Optical Network Trends 2026: Industry Outlook

Optical network trends in 2026 are shifting the limiting factor from raw link speed to system readiness. AI clusters are increasing bandwidth density, power, fiber count, and thermal pressure at the same time. That makes 800G a practical deployment tier, moves 1.6T into platform qualification, and expands coherent pluggables in metro and data center interconnect networks.



The planning question is not "Which technology is fastest?" It is "Which change is ready to deploy, which must be qualified on our host, and which should remain on the watchlist?" This article serves that single decision.





AI demand changes the problem at every distance

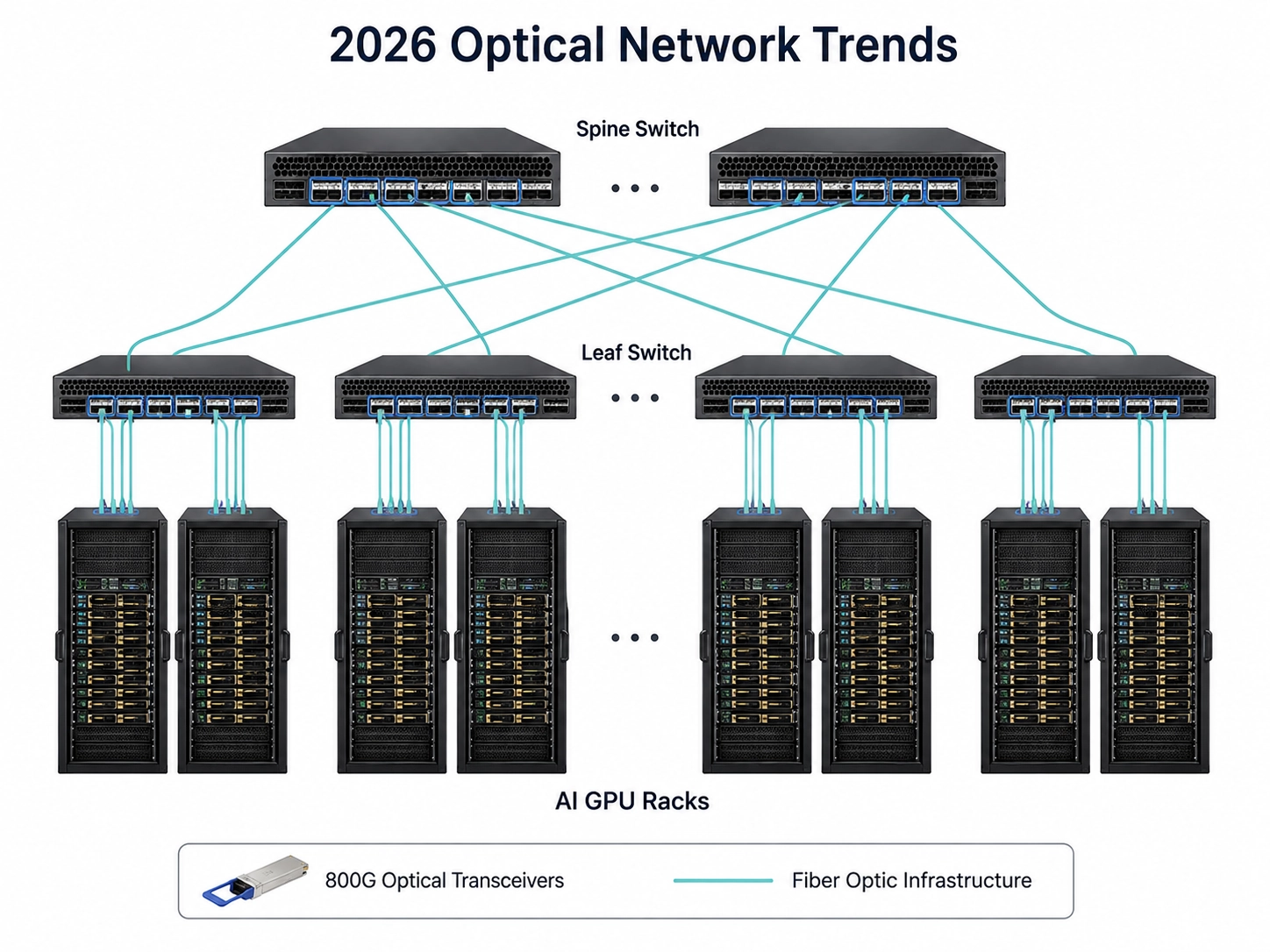

AI data center optical network trends split into three physical domains. Scale-up connects accelerators and memory within a tightly coupled compute domain, where latency and bandwidth density dominate. Scale-out connects racks and rows, where Ethernet interoperability and serviceability matter. Scale-across connects facilities over kilometers, where coherent modulation, DWDM, OSNR, and fiber capacity become decisive.

For a conventional data hall, front-panel pluggables remain the operational default because a failed optic can be isolated and replaced without disturbing the switch package. CPO should enter qualification only after the verified pluggable power or thermal envelope fails the system budget and the operations team accepts a different fiber-serviceability model. Optical I/O addresses a separate package-level compute problem.



800G becomes a normal deployment decision



Among 800G optical network trends, the 2026 change is operational: 800G is moving from roadmap discussion into routine planning for new high-density scale-out fabrics. That affects lane architecture, connector choice, polarity, airflow, and incoming inspection. Switch capacity is only one part of the decision.



An RFQ that says only "800G OSFP" cannot define an equivalent product. The first failure gates are host lane rate, reach, optical interface, and thermal design. FEC behavior, CMIS revision, NOS release, and breakout topology then determine whether a candidate is genuinely substitutable.



The same aggregate rate can sit on different electrical lane architectures. A compatible faceplate and cage do not correct a SerDes mismatch. For that reason, an approval record should identify the host port mode, module application code, cable mapping, FEC owner, NOS release, and CMIS fields observed during testing. Each row needs a pass, fail, or conditional status; a datasheet compatibility claim cannot replace that result.





Thermal evidence requires the same discipline. A transferable record must identify airflow direction, heat-sink geometry, inlet temperature, module power, line-rate traffic condition, measured case temperature, and the remaining margin to the specified case-temperature limit. If a supplier cannot produce those conditions for the tested SKU, the result cannot approve a production lot.



No internal thermal figures are published here because the source package supplied for this article does not contain an auditable record combining those variables. For a quoted SKU, missing thermal evidence leaves the module as a sample candidate; it is not yet an approved production part.



Sample approval also needs revision control. A passing result applies to the tested module revision, firmware, EEPROM profile, host release, and cable assembly. If a production lot changes the laser source, DSP firmware, coding profile, or bill of materials without controlled notification, the earlier result cannot automatically approve the changed unit. For optical network trends to become a usable procurement plan, the approval record must name what was tested and define which supplier changes trigger requalification.



1.6T is a qualification program, not an automatic upgrade



A greenfield AI fabric designed around 200G-per-lane hosts should qualify 1.6T now because the physical design decisions are already being made. A brownfield network with 100G-per-lane hosts cannot gain 1.6T by changing optics alone.



Industry component forecasts show early 1.6T deployment in 2025–2026, with broader acceleration expected from 2027. The important distinction is that a module can be sampling while the 224G electrical interface, switch firmware, thermal envelope, field spares, and acceptance tests are still being qualified. (IEEE 802.3 Ethernet for AI)



The 800G and 1.6T optical networking trends therefore require different buyer actions: deploy 800G where the ecosystem is validated; qualify 1.6T against a named host and release. The 800G-to-1.6T network roadmap carries the product-level host, CMIS, reach, and thermal questions rather than repeating them here.



For coherent DCI, track the standards stream separately. OIF lists published Implementation Agreements for 400ZR and 800ZR, while 1600ZR remains an active project aimed at a power-optimized, multi-vendor 1.6 Tb/s coherent interface. A published IA, a vendor sample, commercial availability, and mainstream deployment are four different milestones. (OIF)



Coherent pluggables reshape DCI within hard boundaries



Data center interconnect trends in 2026 favor router-direct coherent optics when the route is point-to-point or single-span, the optical budget is validated, the line system is compatible, and the routing team can own the required telemetry. OIF's 400ZR IA targets an interoperable 400 GbE coherent interface for an 80 km class DCI application; that target is not a blanket promise for every 80 km fiber path. (OIF 400ZR IA)



Our default design rule is to start a transport-platform evaluation as soon as the design includes multi-span ROADMs, complex amplification, mixed client services, or unclear optical-layer responsibility. Those conditions add channel-power control, path computation, fault localization, and cross-domain operations that cannot be removed by putting a coherent module into a router.



Dell'Oro forecasts IP-over-DWDM system demand to grow at an average annual rate of 16%, reaching $4.4 billion by 2030. The growth signal is meaningful, but it does not override route engineering. (Dell'Oro Group)



The 2026 DCI and coherent optics outlook holds the deeper transponder-versus-router-direct comparison and route checks. The article-level conclusion stays simple: remove a transport layer only when the remaining teams and tools can still operate the optical path.



Open optics replace lock-in with a validation obligation



Open optical networking increases supplier choice; it does not make two modules operationally identical. A standard mode can establish the interface, while telemetry coverage, alarm behavior, firmware handling, and host recognition can still vary by module and software release.



Use a standardized mode when supplier diversity and predictable interoperability are more valuable than maximum reach. Consider a proprietary mode only when the extra performance solves a measured route problem and the commercial plan accounts for reduced substitution options.



Management parity is the condition many substitution lists omit. For example, two optics may establish the same link while one exposes pre-FEC BER and actionable alarms on the target NOS and the other reports only aggregate optical power. That is a qualification scenario, not a claim about a specific unverified FB-LINK test. Verify the required CMIS fields and alarm path on the production host; do not infer them from link-up.



CPO vs pluggable optics in 2026: power does not decide alone



In the middle of the 2026 optical network trends cycle, power efficiency is changing the optical boundary rather than producing one universal replacement. DSP-based pluggables, LPO, CPO, NPO, and optical I/O place serviceable components in different locations and must be qualified as different systems.



Approach	2026 status	Useful when	Disqualifying concern
DSP-based pluggable	Deploy	Replaceability and ecosystem breadth matter	Module heat or power exceeds host envelope
LPO	Qualify selectively	Host electrical margin is proven and power is constrained	Unvalidated SerDes/channel combination
CPO/NPO	Watch or targeted qualification	Switch I/O power and density justify a new service model	Fiber serviceability or thermal coupling is unresolved
Optical I/O	Watch for most network buyers	Package-level compute fabric is the actual bottleneck	Packaging yield and repair model are immature



This is an FB-LINK planning judgment, not a standards classification. A 2026 IEEE overview notes that 100G-per-lane LPO arrived later than DSP-based 800G modules and may capture only a limited share of the pluggable market. (IEEE Electronics Packaging Society)



Our judgment is that pluggables remain the default for general-purpose deployments in 2026. LPO deserves controlled qualification where power is a documented constraint. CPO and optical I/O deserve architectural tracking, but most buyers should not build a near-term supply plan around broad availability.



That judgment holds only if the pluggable stays within the host's verified thermal envelope. Where it does not, the correct next step is system testing, not assuming that an LPO or CPO label will solve the problem.



Optical circuit switching needs a measurable use case



Optical circuit switching can preserve traffic in the optical domain and reduce repeated optical-electrical-optical conversion. Its fit depends on workload stability, reconfiguration time, failure behavior, and controller integration.



If the workload cannot show where circuit switching removes a measurable bottleneck, the project is still a technology demonstration.



OFC's 2026 workshop frames the unresolved questions directly: whether momentum extends beyond one dominant early adopter, which applications truly require OCS, and whether heterogeneous software integration could delay adoption. (OFC Conference)



The transceiver is becoming the monitoring instrument



Optical network monitoring trends determine whether simplified architectures remain operable. When IPoDWDM removes a transponder, the coherent pluggable and router inherit responsibility for optical power, pre-FEC BER, post-FEC counters, ESNR or Q-factor, temperature, and alarm behavior.

A common 400G DR4 failure example is an intermittent link caused by contamination on MPO trunk end faces even though the modules pass bench regression. Because the current editorial evidence file does not contain a traceable FB-LINK ticket and test record, this version does not present the example as a company investigation or attach an internal failure rate. The useful order of operations remains: inspect both end faces, read both ends, check overload as well as sensitivity, and compare telemetry before replacing the module.





The optical performance monitoring procedure for DWDM and 400ZR provides the deeper host/module measurement workflow. It is not duplicated in this annual outlook.



What network teams should deploy, qualify, and watch



Decision tier	Technologies	2026 action
Deploy	Validated 800G links; 400ZR/OpenZR+ on suitable routes	Confirm the production host, optical boundary, thermal envelope, and monitoring path
Qualify	1.6T, 800ZR, selected LPO	Test named samples on the target NOS, airflow, traffic, temperature, and recovery conditions
Watch	Broad CPO/NPO, OCS, and in-package optical I/O	Track serviceability, standards status, orchestration, yield, and multi-source availability



Aggregate speed should be the last line of a supplier comparison, not the first. The preceding gates decide whether two quotations describe equivalent products. The full acceptance matrix is deliberately not reproduced here because it must be populated against the buyer's actual switch and software inventory.



Final planning gate



Before production procurement, the project record should identify the route, host and NOS, electrical lane rate, optical interface, FEC ownership, thermal limit, required telemetry, and sample acceptance criteria. These are the minimum gates; the values themselves must come from the target environment rather than a generic checklist.



If one of those lines remains "to be confirmed," it belongs in qualification rather than in the production purchase order. The transceiver supplier qualification and change-control checklist carries the deeper evidence questions for that gate.



This is the practical implication of optical networking trends 2026: deploy what has passed system-level approval, qualify what changes the host boundary, and watch technologies whose service model or ecosystem remains unsettled.
