FB-LINK delivers an extensive portfolio of Wavelength Division Multiplexing and Optical Transport Network solutions capable of accommodating diverse service combinations across data transmission, storage systems, video distribution, and Time Division Multiplexing applications. Our offerings encompass 10/40/100/400Gb Ethernet connectivity alongside 8/16/32G Fibre Channel implementations utilizing Dark Fiber infrastructure, WDM technology, and OTN-based architectures.
Data Center Interconnect and Optical Transport Network solutions comprise comprehensive hardware platforms and technological frameworks engineered for delivering high-throughput, dependable, and optimized data transmission throughout optical infrastructure. These systems incorporate transponders and transceivers that perform electrical-to-optical signal conversion for fiber-based transmission and the reverse optical-to-electrical conversion. Optical multiplexing and demultiplexing equipment facilitates the aggregation or segregation of multiple optical channels within individual fiber strands, supporting multi-wavelength transmission through Wavelength Division Multiplexing methodologies. These integrated solutions and technologies establish the fundamental infrastructure for contemporary optical networking, facilitating efficient, high-volume, and reliable data transport across diverse implementation scenarios.

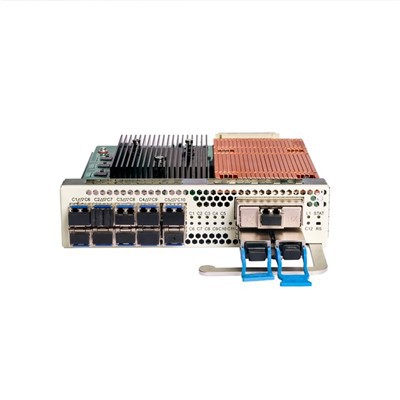

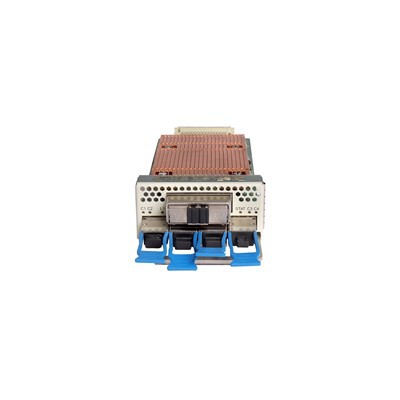

Transponder Technology
Transponders function as active network components responsible for transmitting and receiving optical signals throughout fiber infrastructure. Principal distinguishing factors among transponder variants include supported data throughput and maximum propagation distance capabilities. These devices perform conversion of short-distance SR/LR signals originating from fiber optic switching equipment into extended-range xWDM signals. This conversion process enables the transformed xWDM signal to traverse optical fiber pathways across greater distances through multiple channels utilizing transceivers and multiplexing devices. Consequently, transponders serve as essential components when establishing optical networks for challenging deployment scenarios including service provider infrastructures, fulfilling critical functions in signal propagation throughout xWDM network architectures.

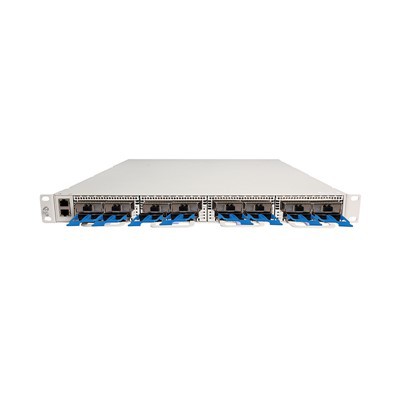

Muxponder Technology

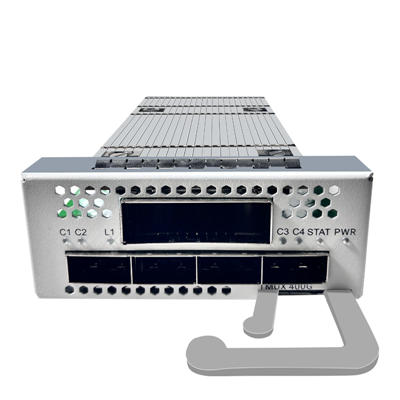

Comparable to transponder functionality, muxponders likewise serve as components for optical signal transmission and reception through fiber media. Nevertheless, muxponders possess additional capabilities for aggregating multiple services within a single wavelength through multiplexing various channels into higher-order signals. This functionality enables more effective fiber utilization compared to standard transponders while permitting muxponder deployment even in situations lacking DWDM transceiver alternatives. As an example, multiple 32G or 40G signals can be aggregated onto a unified 100G or 200G output interface.
Standardized Framework
OTN specifications incorporate a standardized multiplexing structure, precisely defining the integration methods for lower-rate signals into higher-rate payload containers. This framework allows WDM platforms to accommodate lower-rate services within 10Gbps, 40Gbps, or 100Gbps wavelength channels without requiring external wavelength demultiplexing or manual cross-connections.
Enhanced Transport Capacity
OTN infrastructures deliver the foundational high-capacity framework for core inter-office connectivity, metropolitan inter-office links, and broadband business-access networks. Service providers implement OTN to maximize service delivery while minimizing infrastructure requirements.
Cost Optimization
Through transporting multiple client services on individual wavelengths while maintaining their specific requirements, OTN networks decrease overall transport expenses and ensure optimized bandwidth allocation.
Deployment Adaptability
Network administrators can implement technologies addressing current transport requirements while enabling future integration of emerging technologies as operational needs evolve. The architecture readily accommodates ring topologies, point-to-point networks, and mesh configurations.
Clock Signal Preservation
Clock signal preservation proves essential for delivering wholesale services to external providers. OTN transparency enables networks to transport any service type, encompassing Ethernet, storage protocols, digital video content, and SONET/SDH signals without disrupting client timing characteristics.
Data Center Integration
Establishing connections among multiple data center facilities to enable resource sharing, enhance redundancy measures, and support data backup alongside disaster recovery operations. DCI/OTN solutions deliver requisite bandwidth and minimal-latency connectivity across geographically distributed data center locations.
Cloud Infrastructure Providers
Supporting cloud infrastructure providers in interconnecting their data center facilities, improving scalability and availability of cloud-based service offerings. Establishing high-performance and secure connections across different cloud locations to address increasing cloud service demand.
Corporate Network Infrastructure
Creating interconnections between enterprise sites, including branch locations and corporate headquarters, for seamless communication and data exchange. These solutions provide robust and high-capacity optical transport infrastructure supporting data-intensive applications while ensuring dependable connectivity.
Content Distribution Networks
Efficiently distributing content through caching mechanisms positioned closer to end-users for accelerated access and minimized latency. These products support the substantial bandwidth demands of CDN architectures by delivering rapid and reliable data transport.
Distinguishing Muxponders, Transponders, and Transceivers
Within optical fiber communications, transceivers, transponders, and muxponders all function as components for optical signal reception and transmission while supporting electrical-to-optical signal transformation. However, these represent distinct devices with individual design objectives. The subsequent section outlines the distinctions among muxponders, transponders, and transceivers.
Transceivers interface with host equipment through serial electrical connections, accomplishing signal reception and transmission within a single module. Conversely, transponders or muxponders employ parallel electrical interfaces, depending on transceiver pairs to achieve complete signal reception and transmission capabilities. In simpler terms, a transponder necessitates one transceiver for signal transmission at one endpoint and another transceiver for signal response at the opposite endpoint.
WDM transponders or muxponders can transform signals from multimode wavelengths to single-mode coarse WDM (CWDM) or dense WDM (DWDM) wavelengths for extending transmission range. In contrast, DWDM or CWDM transceivers transmit or receive optical signals at specific wavelengths, with output and received data maintaining identical mode, data rate, and wavelength characteristics. The signal experiences no modification or amplification whatsoever.
Transponders or muxponders find application in wavelength division multiplexing system networks for consolidating multiple fiber types and wavelengths within unified systems while preserving signal quality throughout long-distance transmission. Transceivers typically serve in straightforward networks for shorter-distance implementations.
Muxponders differ from transceivers and transponders in their multi-service handling capabilities. They can multiplex numerous client interfaces featuring varying speeds, protocols, and wavelengths into a unified interface with elevated data rates. For instance, a muxponder featuring a 10G output port can accept multiple 1GE, 100M, and even 10GE inputs while combining them into a single 10GE interface. However, transponders or transceivers lack this capability.
To date, FB-LINK has secured over 65 invention patents alongside more than 90 software copyright registrations. The organization has achieved national high-tech enterprise status. Furthermore, it has received national innovation fund support within the internet security domain on multiple occasions.
FB-LINK maintains a technical workforce possessing robust engineering, installation, and project oversight capabilities suitable for managing comprehensive network deployments for Telecommunications Service Providers, Cloud Service Providers, Cable Multiple System Operators, and large-scale enterprises. Skilled technicians deliver comprehensive solutions including on-site deployment services.
