400G QSFP-DD FR4 2KM Transceiver Module
400G QSFP‑DD FR4 optical transceiver module, 400Gbps PAM4, CWDM4 1271‑1331nm, up to 2km over G.652 single‑mode fiber, Duplex‑LC connector, DDM DOM supported. Compatible with major brand switches, routers & AI servers. Factory supply, sample & bulk orders available.
- Product Introduction

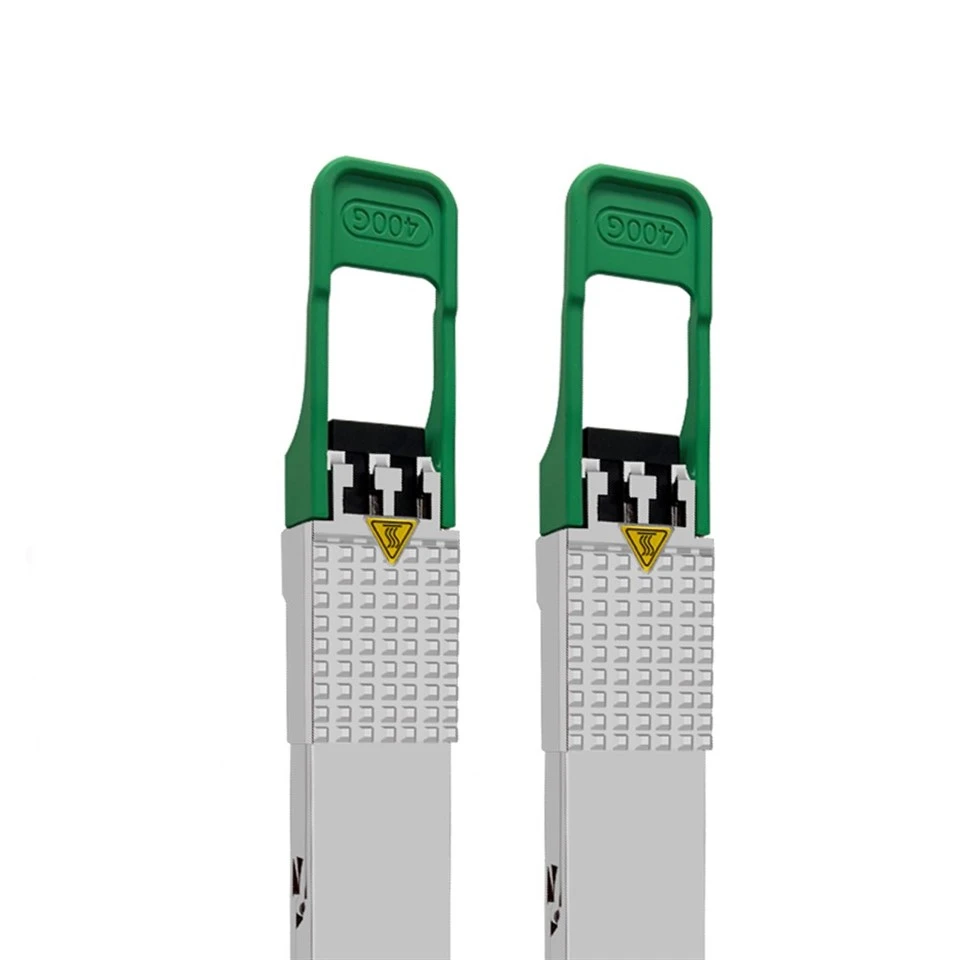

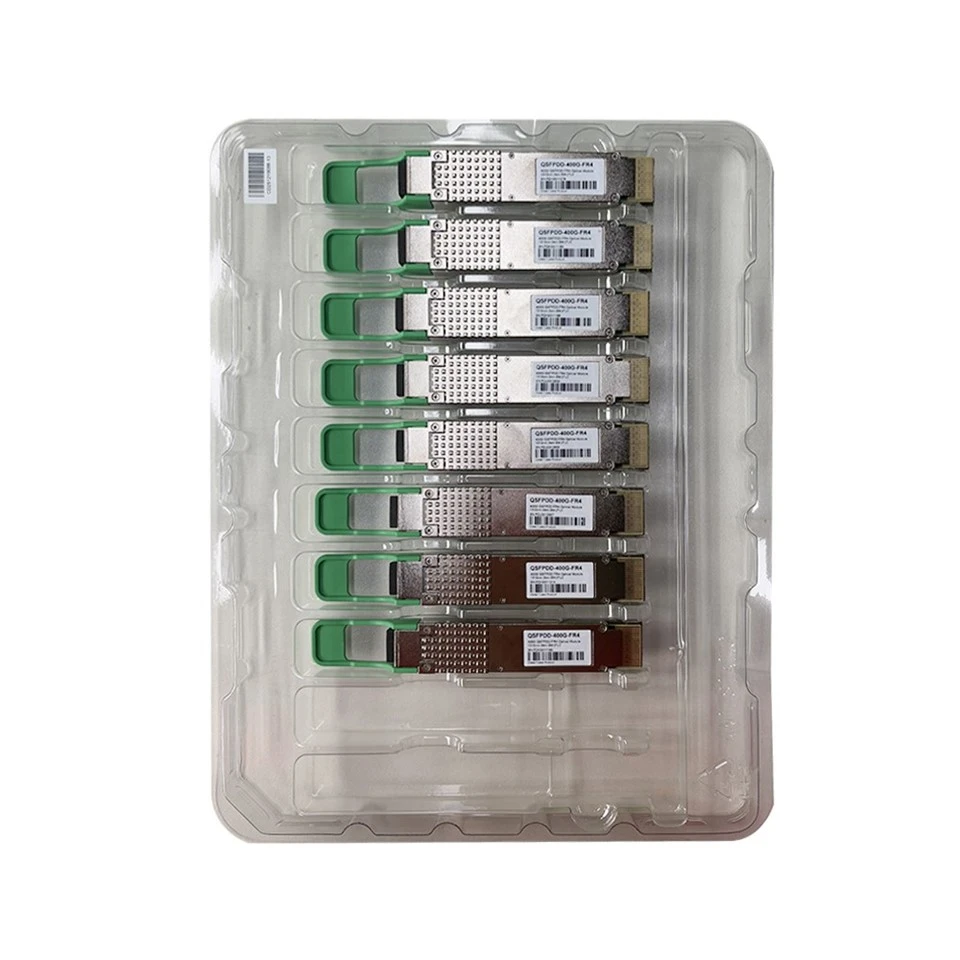

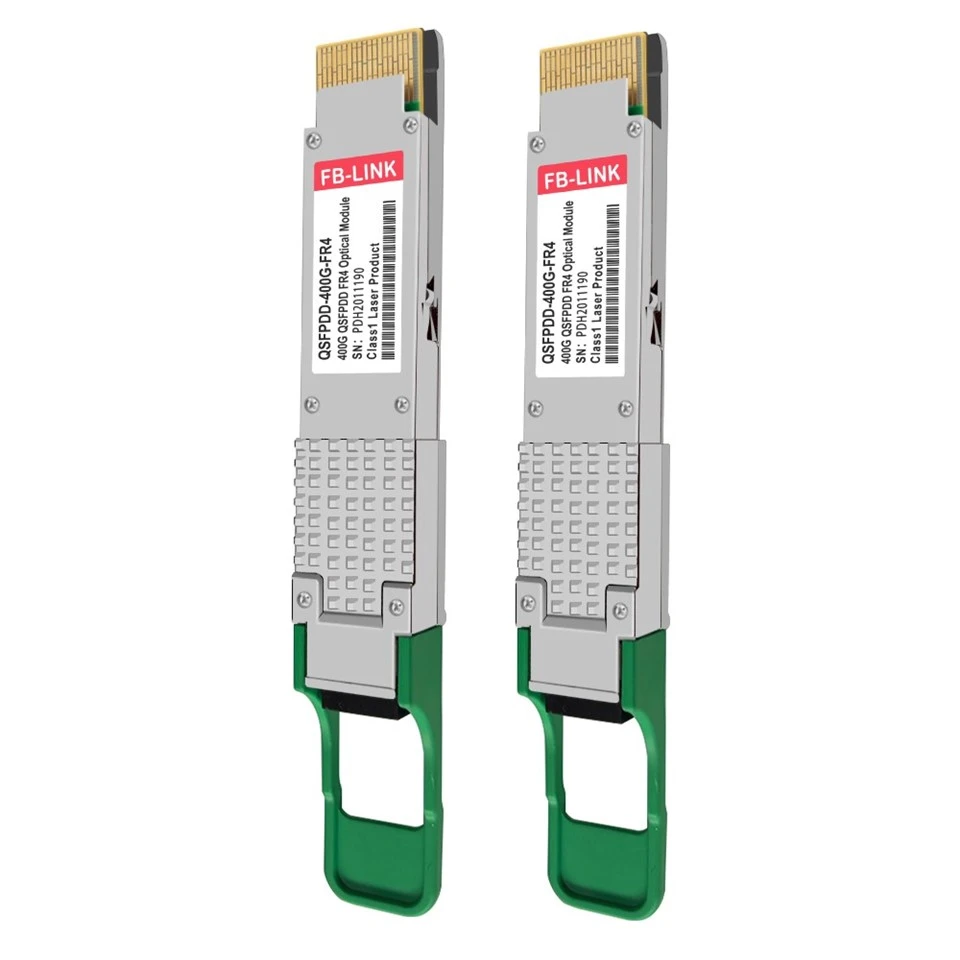

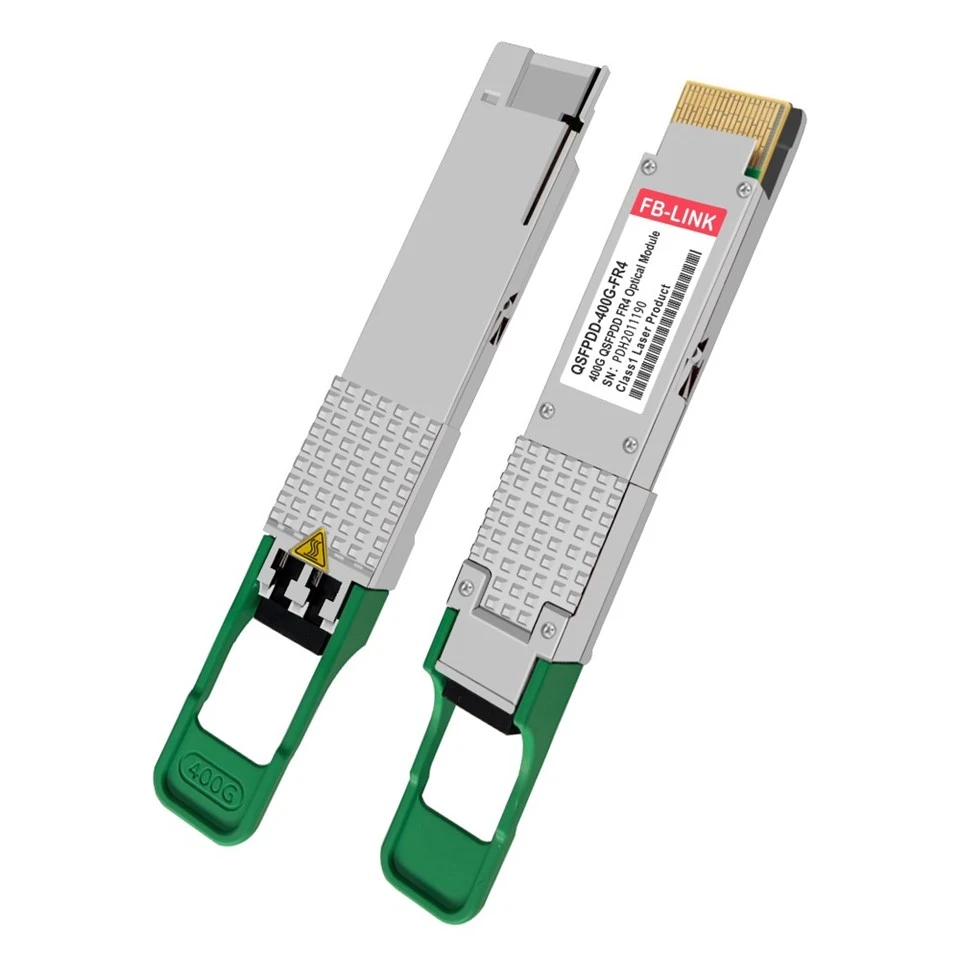

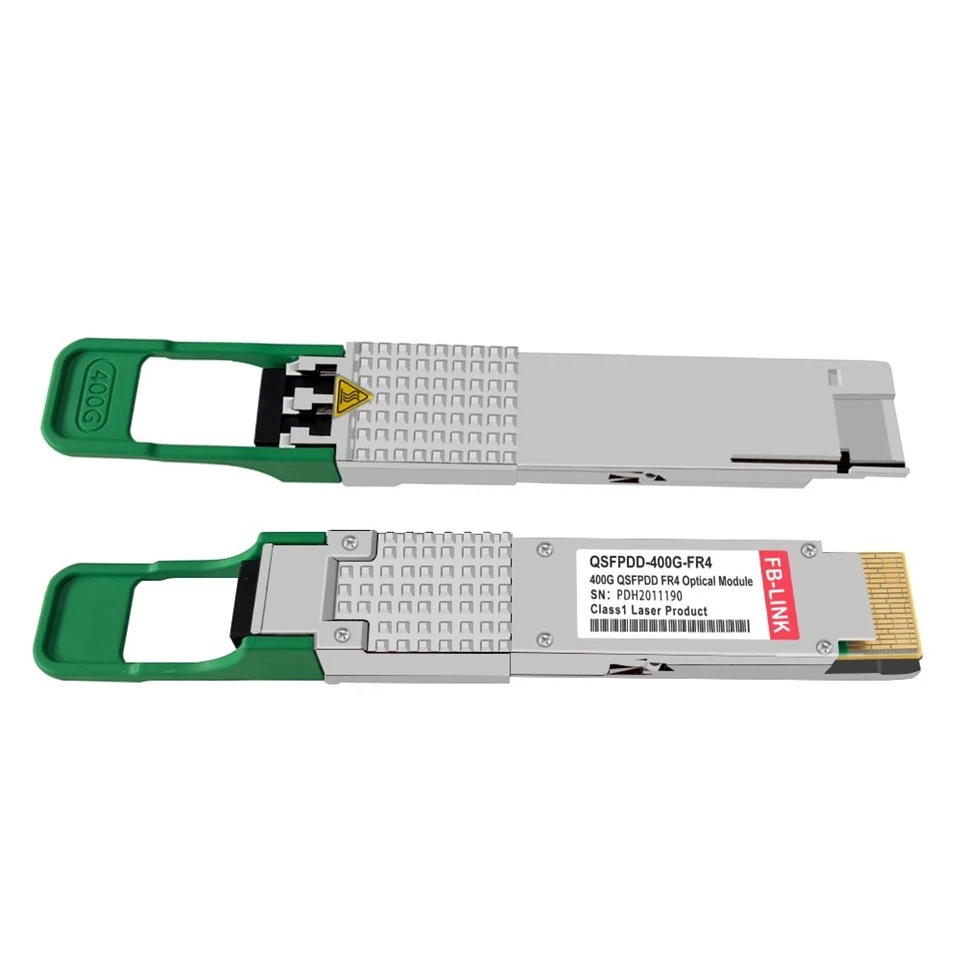

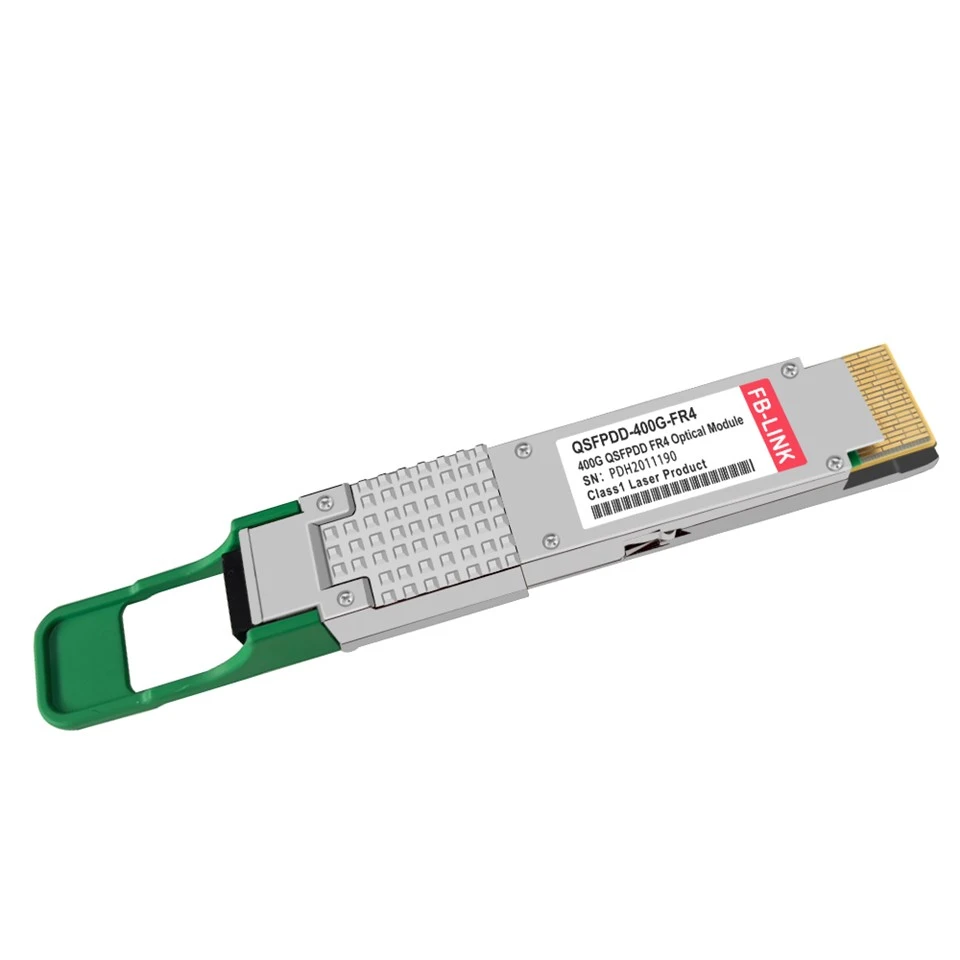

400G QSFP‑DD FR4 1310nm 2km Optical Transceiver Module
400G QSFP‑DD FR4 Transceiver Module
The 400GBASE‑FR4 QSFP‑DD transceiver is a cost‑effective high‑speed optical solution for short‑reach single‑mode data‑center interconnection. Adopting CWDM4 wavelength‑division multiplexing technology, it transmits full 400G PAM4 bandwidth over one‑pair duplex single‑mode fiber, greatly reducing cabling investment for campus DCI, intra‑building and row‑to‑row cloud & AI network deployment.
400G QSFP-DD FR4 Key Features
- Compliant with IEEE 802.3bs, QSFP‑DD MSA, 100G Lambda MSA standards
- 4‑lane CWDM4 wavelengths: 1271 nm, 1291 nm, 1311 nm, 1331 nm (central 1310 nm band)
- Max 2 km transmission over standard G.652 SMF single‑mode fiber
- Duplex‑LC/UPC optical interface; Hot‑pluggable QSFP‑DD form‑factor
- PAM4 modulation, 106.25 Gbps per optical lane, total 400 Gbps full‑duplex bandwidth
- Built‑in DDM/DOM digital diagnostic monitoring, real‑time monitor temperature, voltage, Tx/Rx optical power
- Built‑in CDR, support host‑side FEC for stable low‑BER transmission
- Low power consumption ≤ 12 W; standard operating temperature: 0 ℃ ~ 70 ℃
- RoHS‑6 compliant; Support both 400G Ethernet and InfiniBand protocols
- Wide interoperability with mainstream switches, routers, GPU servers and NIC hardware
400G QSFP-DD FR4 2KM Technical Specifications
| Item | Parameter |
|---|---|
| Product Model | 400GBASE‑FR4 QSFP‑DD |
| Form Factor | QSFP‑DD |
| Data Rate | 400 Gbps (4 × 106.25 Gbps PAM4) |
| Wavelength | CWDM4: 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Transmission Distance | Up to 2 km on G.652 Single‑Mode Fiber (SMF) |
| Optical Connector | Duplex LC‑UPC |
| Laser Type | EML (Electro‑absorption Modulated Laser) |
| Detector | PIN Photo‑diode |
| Power Consumption | ≤ 12 W |
| Operating Case Temperature | 0 ℃ ~ 70 ℃ (Commercial Grade) |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Digital Diagnostic | DDM / DOM Supported |
| Supported Protocol | 400G‑Ethernet, InfiniBand |
| Compliance | IEEE 802.3bs, QSFP‑DD MSA, 100G Lambda MSA, RoHS |
Compatibility List
Fully interoperable with mainstream QSFP‑DD‑port network hardware
- Support custom compatible part‑number labeling for your brand / OEM requirement
- Contact our sales team for quotation, compatibility test report and technical support.
