Fiber optic amplifiers represent advanced all-optical devices deployed within communication networks to boost signal strength. These sophisticated components feature various categorization methods. For instance, transimpedance amplifiers serve as prevalent circuit configurations in photodetection pre-amplification stages, utilizing integrated operational amplifier designs that convert current into voltage through resistive gain mechanisms with adjustable bandwidth parameters. These devices enable both signal transmission and enhancement throughout optical fiber infrastructure, with multiple classification frameworks defining their distinct characteristics.
Categorization Based on Amplification Medium

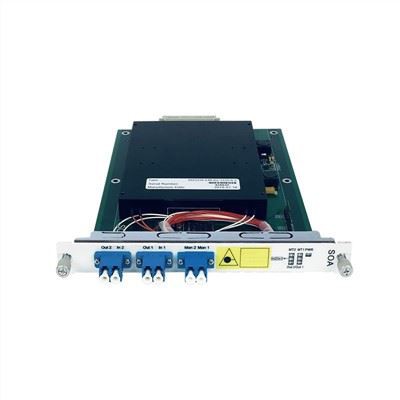

SOA (Semiconductor Optical Amplifiers)
These amplifiers utilize semiconductor substrates as their primary gain medium. SOA technology offers compact form factors, superior integration capabilities, and seamless compatibility with complementary optical components. However, limitations include restricted bandwidth ranges, elevated noise characteristics, and constrained power output levels.
Doped Fiber Amplifiers Using Rare Earth Elements
This category employs optical fibers infused with rare earth materials (including erbium Er, thulium Tm, praseodymium Pr, neodymium Nd, among others) as the amplification medium. Signal enhancement occurs through energy transitions within these rare earth dopants. Such amplifiers deliver extensive bandwidth coverage, minimal noise generation, and substantial output power capabilities, establishing their prominence in telecommunication applications. The erbium-doped variant (EDFA) stands as the most prevalent implementation.
Wavelength-Based Classification
Standard Band Amplifiers
These devices function within the 1550nm wavelength region, representing the predominant transmission spectrum in fiber communications. This particular band exhibits minimal fiber attenuation, facilitating significant signal magnification.
Extended Bandwidth Amplifiers
Operating beyond the standard 1550nm range, these amplifiers cover regions such as C+L band combinations and S+C band configurations. Despite encountering higher fiber loss characteristics, these spectral regions provide expanded bandwidth potential and enhanced capacity, making them valuable for high-throughput, rapid-speed communication infrastructures.
Classification by Amplification Characteristics
Linear Amplification Systems
These systems provide proportional amplification of incoming signals, demonstrating excellent linearity properties for precise signal enhancement. Primary applications involve digital signal amplification and propagation.
Nonlinear Amplification Systems
Leveraging nonlinear phenomena for signal enhancement, these amplifiers exhibit superior broadband capabilities and reduced noise levels, though they introduce nonlinear signal distortion. They primarily serve analog signal amplification and transmission requirements.
Operational Principle Categories
Direct Amplification Devices
These devices amplify incoming signals through straightforward mechanisms, offering structural simplicity and ease of implementation. Trade-offs include higher noise floors and limited gain capacity. Applications center on short-range, limited-capacity communication networks.
Push-Pull Configuration Devices
This architecture divides input signals into dual pathways, amplifying each independently before recombining for output. Benefits include enhanced gain performance and suppressed noise characteristics, though system complexity and costs increase accordingly. These find application in extended-range, high-capacity network deployments.
Application-Oriented Classification
Active Amplification Systems
These systems require external power sources for operation within communication infrastructures. External energy input enables achievement of superior gain levels and noise suppression. Deployment focuses on long-distance, high-capacity network implementations.
Passive Amplification Systems
Operating without external power requirements in communication networks, these systems function independently of external energy sources. However, they deliver reduced gain performance and elevated noise levels compared to active counterparts. Typical applications involve shorter transmission distances and moderate capacity requirements.
Key Functions of Fiber Optic Amplifiers
Signal Power Enhancement
Amplification of light source outputs increases signal intensity, enabling extended transmission distances and broader network coverage.
Quality Improvement
Through optical signal amplification, these devices minimize attenuation and distortion throughout transmission paths, reducing bit error rates and enhancing data transmission dependability.
Speed Enhancement
As fiber communication technology advances toward high-speed, large-capacity data transfer, these amplifiers support elevated transmission rates, maximizing information throughput within constrained timeframes.
Network Architecture Optimization
These devices streamline fiber communication network topologies by reducing repeater requirements, decreasing system complexity and operational expenses while enhancing network stability and dependability.
Establish connections between the amplifier and intended optical equipment, ensuring secure attachments to prevent signal degradation and distortion during transmission.
Link the opposite terminal to the fiber optic transmission device, verifying proper connectivity to enable signal entry into the amplifier.
Configure amplifier parameters according to required amplification levels by adjusting optical output power. This involves modifying gain settings, input levels, and output power parameters.
When integrating additional equipment such as transceiver modules or wavelength division multiplexing devices, verify correct and stable connections for reliable signal propagation.
Throughout operation, conduct regular performance assessments and condition monitoring of the amplifier to ensure optimal functionality and prevent thermal damage or other failure modes.
Furthermore, during installation and operation, avoid subjecting the amplifier to excessive mechanical tension or insufficient bending radii, as such conditions may compromise internal structures or degrade performance characteristics.
