Wavelength Division Multiplexing (WDM) is a revolutionary fiber optic transmission technology that enables multiple optical carrier signals to be transmitted simultaneously over a single optical fiber by using different wavelengths (colors) of laser light. This technology effectively multiplies fiber capacity by 8x, 16x, 40x, 80x or even more, eliminating the need for expensive new fiber deployment.
Think of WDM like a multi-lane highway: instead of building new highways (laying new fiber), WDM adds multiple lanes to the existing highway, allowing more traffic to flow simultaneously. Each wavelength channel operates independently, carrying data at full speed without interference.
CWDM (Coarse Wavelength Division Multiplexing) emerged first as a cost-effective solution for metropolitan networks and short-to-medium distance applications. CWDM uses wider channel spacing (20nm between wavelengths) in the 1270nm-1610nm spectrum, supporting up to 18 wavelength channels. The coarse spacing allows use of uncooled lasers, reducing transceiver costs significantly.
DWDM (Dense Wavelength Division Multiplexing) represents the next evolution, packing many more channels into the same fiber using narrow channel spacing (typically 0.8nm, 0.4nm, or even 0.2nm in the C-band around 1550nm). DWDM systems can support 40, 80, 96, or even 160+ wavelength channels on a single fiber pair, making it ideal for long-haul, ultra-high-capacity backbone networks.
CWDM SFP Transceivers (1G)
18 wavelength channels: 1270nm - 1610nm (20nm spacing)
Transmission distances: 20km, 40km, 60km, 80km, 120km
Hot-pluggable design with LC duplex connector
DDM (Digital Diagnostic Monitoring) support
Applications: Metro access, enterprise networks, 5G fronthaul
CWDM SFP+ Transceivers (10G)
Full CWDM grid wavelengths from 1270nm to 1610nm
Distance options: 20km, 40km, 60km, 80km
Low power consumption: ≤1.5W
Compatible with major networking platforms
Applications: Data center interconnect, carrier metro networks
CWDM XFP Transceivers (10G)
18 CWDM wavelengths available
Extended reach up to 80km
MSA compliant with comprehensive diagnostics
Applications: Legacy 10G network infrastructure
CWDM Mux/Demux Modules
4CH, 8CH, 16CH, 18CH configurations
ABS plastic box or LGX metal cassette packaging
Single fiber or dual fiber designs
Low insertion loss: <2.5dB (typical)
High channel isolation: >30dB
Applications: Wavelength aggregation and distribution
CWDM OADM (Optical Add-Drop Multiplexer)
Selective wavelength add/drop capability
Plug-and-play operation
No power required (passive components)
Applications: Ring topology networks, flexible wavelength routing
DWDM SFP/SFP+ Transceivers
ITU-T G.694.1 standard wavelengths (C-band: 1528nm-1565nm)
100GHz (0.8nm) or 50GHz (0.4nm) channel spacing
Tunable and fixed wavelength options
Distance capabilities: 40km, 80km, 120km with appropriate amplification
Applications: Long-haul transmission, metro core networks
DWDM XFP/X2 Transceivers (10G)
Full C-band ITU grid support
Tunable DWDM XFP for operational flexibility
Extended temperature range options (-5°C to 85°C)
APD receiver for superior sensitivity
Applications: Carrier backbone, submarine systems
DWDM QSFP28 Transceivers (100G)
100G DWDM PAM4 or coherent technology
Tunable across 96 ITU channels
80km, 120km transmission capability
CFP/CFP2 form factors also available
Applications: 100G+ data center interconnect, 5G backhaul
DWDM Mux/Demux (Multiplexer/Demultiplexer)
8CH, 16CH, 32CH, 40CH, 48CH, 80CH, 96CH configurations
100GHz or 50GHz channel spacing
Athermal AWG (Arrayed Waveguide Grating) technology
Dual-stage or three-stage interleaver designs for 50GHz
Rack-mount 1U/2U or LGX cassette packaging
Low insertion loss, high isolation, excellent thermal stability
Applications: DWDM system wavelength multiplexing/demultiplexing
DWDM OADM Modules
Single-channel or multi-channel add/drop
East-west pass-through with add/drop ports
Compact design for space-constrained deployments
Applications: Metro ring networks, reconfigurable optical networks
Optical Amplifiers
EDFA (Erbium-Doped Fiber Amplifier) for C-band amplification
Booster, in-line, and pre-amplifier configurations
Output power: +13dBm to +23dBm
Low noise figure: <5dB (typical)
Automatic gain control (AGC) and automatic power control (APC)
Applications: Long-distance DWDM transmission, fiber loss compensation
Optical Channel Monitors (OCM)
Real-time wavelength and power monitoring
Multi-channel simultaneous monitoring
SNMP management interface
Applications: DWDM system performance monitoring and troubleshooting
Dispersion Compensation Modules (DCM)
Compensates chromatic dispersion in long-haul transmission
Various dispersion values: -200ps/nm to -1600ps/nm
Applications: Extending transmission distance beyond 80km
| Parameter | CWDM | DWDM |
|---|---|---|
| Channel Spacing | 20nm (Wide) | 0.8nm, 0.4nm, 0.2nm (Narrow) |
| Number of Channels | Up to 18 channels | 40, 80, 96, 160+ channels |
| Wavelength Range | 1270nm-1610nm (O, E, S, C, L bands) | 1528nm-1565nm (C-band primarily) |
| Laser Type | Uncooled DFB laser | Cooled DFB laser or tunable laser |
| Transceiver Cost | Lower (uncooled laser) | Higher (cooled/tunable laser) |
| System Capacity | Up to 180Gbps (18 x 10G) | 8Tbps+ (80 x 100G) |
| Maximum Distance | 40-120km (without amplification) | 1000km+ (with amplification) |
| Optical Amplification | Not compatible with EDFA | Compatible with EDFA/Raman amplifiers |
| Fiber Type Sensitivity | More sensitive to fiber type | Less sensitive (C-band optimized) |
| Temperature Control | Not required | Required for laser stability |
| Best Applications | Metro access, enterprise, medium distance | Long-haul, ultra-high capacity, submarine |
| Power per Channel | -3dBm to 0dBm typical | 0dBm to +4dBm typical |
| Total Cost of Ownership | Lower for 8-18 channels | Lower for 40+ channels |
When to Choose CWDM
✅ Metro and Access Networks: Distances under 80km where amplification is not needed
✅ Budget-Conscious Deployments: Lower transceiver costs make CWDM ideal when 8-18 channels are sufficient
✅ Enterprise Data Center Interconnect: Connecting campus buildings or nearby facilities
✅ 5G Fronthaul/Midhaul: Cost-effective wavelength multiplexing for 5G cell site aggregation
✅ Rapid Deployment: Simpler installation without temperature-controlled lasers
✅ Low-to-Medium Capacity Requirements: When aggregate bandwidth under 200Gbps meets needs
When to Choose DWDM
✅ Long-Haul Transmission: Distances exceeding 120km requiring optical amplification
✅ Ultra-High Capacity Requirements: When 40+ wavelength channels are needed
✅ Future Capacity Growth: Easier to add channels without infrastructure changes
✅ Submarine and Intercontinental Links: Maximum fiber utilization for undersea cables
✅ Carrier Backbone Networks: Service provider core networks with massive bandwidth demands
✅ Data Center Interconnect (DCI) Over 100km: Connecting geographically dispersed hyperscale data centers
Scenario 1: Metropolitan Area Network Expansion
Challenge: A city government needs to connect 12 municipal buildings across a 50km metropolitan area, requiring 10Gbps connectivity to each location with limited fiber availability.
FB-LINK Solution:
Deploy CWDM SFP+ 10G transceivers (12 different wavelengths)
Install 12CH CWDM Mux/Demux at central hub
Use existing single-mode fiber pair for all 12 locations
Total capacity: 120Gbps on one fiber pair
Benefits:
92% reduction in fiber infrastructure costs
Rapid deployment within 2 weeks
Scalable to 18 locations without new fiber
Lower operational complexity compared to DWDM
Scenario 2: Carrier Long-Haul Backbone Network
Challenge: Telecommunications carrier needs to establish 400km backbone link between major cities with future scalability to 8Tbps aggregate capacity.
FB-LINK Solution:
Deploy 40CH DWDM system with 100GHz spacing
Install DWDM 100G QSFP28 coherent transceivers (initial 20 channels)
Deploy EDFA optical amplifiers every 80km (5 amplifier sites)
40CH DWDM Mux/Demux at both terminal sites
Optical channel monitor for performance visibility
Initial Capacity: 2Tbps (20 channels × 100Gbps) Future Capacity: 8Tbps (80 channels × 100Gbps with 50GHz spacing)
Benefits:
400km transmission without signal regeneration
Pay-as-you-grow channel activation
Single fiber pair supports 8Tbps
75% reduction in per-Gbps transport cost
Scenario 3: Data Center Interconnect for Financial Services
Challenge: Financial institution requires low-latency, high-bandwidth connectivity between primary data center and disaster recovery site 85km apart, with stringent reliability requirements.
FB-LINK Solution:
Hybrid DWDM solution for maximum flexibility
Deploy 16CH DWDM system with mix of 10G and 100G transceivers
Dedicated wavelengths for different traffic types (production, backup, management)
Redundant path protection with OADM for ring topology
Real-time monitoring with optical channel monitor
Configuration:
4 × 100G DWDM channels for production traffic
8 × 10G DWDM channels for backup and replication
2 × 10G DWDM channels for management and monitoring
2 channels reserved for future growth
Benefits:
Sub-millisecond latency for trading applications
Deterministic performance with dedicated wavelengths
99.999% availability with path protection
Simplified network architecture
Scenario 4: 5G Mobile Backhaul Aggregation
Challenge: Mobile operator needs to aggregate traffic from 18 5G cell sites in urban area, each requiring 10Gbps capacity, using limited fiber resources.
FB-LINK Solution:
Deploy CWDM SFP+ 10G transceivers at each cell site
Install 18CH CWDM Mux/Demux at central office aggregation point
Utilize existing fiber infrastructure (2 fibers)
Passive CWDM topology for high reliability
Benefits:
Zero power consumption at passive Mux/Demux sites
Immediate 10Gbps per site without fiber addition
Predictable latency for 5G services
80% CapEx savings vs. new fiber deployment
Scenario 5: Enterprise Multi-Site Campus Network
Challenge: University campus with 10 buildings needs unified high-speed network, with distances ranging from 2km to 15km between buildings.
FB-LINK Solution:
CWDM ring topology using OADM modules
10CH CWDM SFP+ 10G transceivers
Each building can add/drop designated wavelengths
Survivable ring architecture for path redundancy
Benefits:
Any-to-any building connectivity at 10Gbps
Automatic failover protection
Easy addition of new buildings
Single fiber ring infrastructure
Core Components of a DWDM System
1. Colored Optical Transceivers The transmitter generates optical signals at precise ITU-T standardized wavelengths. DWDM transceivers use temperature-controlled DFB (Distributed Feedback) lasers or tunable lasers to maintain wavelength accuracy within ±0.01nm, critical for dense channel spacing.
2. Optical Multiplexer (Mux) The multiplexer combines multiple wavelength channels into a single fiber using thin-film filter (TFF) technology or arrayed waveguide grating (AWG). Key specifications include:
Insertion loss: 3-5dB typical
Channel isolation: >30dB to prevent crosstalk
Passband width: Determines wavelength tolerance
Thermal stability: Athermal designs maintain performance across temperature ranges
3. Optical Demultiplexer (Demux) At the receiving end, the demultiplexer separates the combined wavelengths back into individual channels, routing each to its corresponding receiver. Mirror image of the multiplexer with identical specifications.
4. Optical Amplifiers (EDFA) Erbium-Doped Fiber Amplifiers boost signal power in the C-band (1530-1565nm) to overcome fiber attenuation and splitting losses. Key parameters:
Gain: 15-30dB typical
Noise figure: 4-6dB
Output power: +13dBm to +23dBm
Gain flatness: Critical for equal amplification across all channels
5. Dispersion Compensation For transmission beyond 80km, chromatic dispersion causes pulse spreading. DCM (Dispersion Compensation Module) or DCF (Dispersion Compensation Fiber) compensates for accumulated dispersion, extending reach to 400km+.
6. Optical Add-Drop Multiplexer (OADM) Enables intermediate sites to add/drop specific wavelengths while passing through other wavelengths, creating flexible ring or linear network topologies without full demux/mux.
7. Optical Channel Monitor (OCM) Provides real-time visibility into each wavelength channel's power level, enabling proactive maintenance and rapid troubleshooting.
DWDM Transmission Distance Calculation
Link Budget Formula:
PT (dBm) - Fiber Loss (dB) - Connector Loss (dB) - Mux/Demux Loss (dB) - Margin (dB) ≥ Receiver Sensitivity (dBm)
Example 80km DWDM Link:
Transmit power: +2dBm
Fiber loss: 80km × 0.25dB/km = 20dB
Connector loss: 2 connectors × 0.5dB = 1dB
Mux/Demux loss: 3dB + 3dB = 6dB
System margin: 3dB
Total loss budget: 30dB
Required receiver sensitivity: +2dBm - 30dB = -28dBm
DWDM SFP+ receivers typically have -24dBm sensitivity, requiring optical amplification for 80km+ spans.
ITU-T G.694.1 DWDM Grid
The International Telecommunication Union (ITU) standardized DWDM wavelengths to ensure global interoperability:
100GHz Channel Spacing (0.8nm):
Reference frequency: 193.1 THz (1552.52nm)
40-80 channels typical in commercial systems
Channel numbering: ITU channels 20-60
Example channels: 1530.33nm (Ch21), 1550.12nm (Ch35), 1560.61nm (Ch49)
50GHz Channel Spacing (0.4nm):
Doubles channel capacity to 80-160 channels
Requires tighter laser wavelength control
More sensitive to chromatic dispersion
Used in ultra-high-capacity long-haul systems
Flex Grid (Variable Spacing):
12.5GHz granularity for bandwidth optimization
Allocates spectrum based on modulation format and reach
Enables super-channels for 400G/800G/1T transmission
Maximizes spectral efficiency
Popular DWDM Channels
| ITU Channel | Frequency (THz) | Wavelength (nm) | Common Use |
|---|---|---|---|
| Ch20 | 196.0 | 1530.33 | Edge of C-band |
| Ch23 | 195.7 | 1532.68 | Metro DWDM |
| Ch30 | 195.0 | 1538.19 | Data center DCI |
| Ch35 | 194.5 | 1544.53 | Long-haul primary |
| Ch45 | 193.5 | 1557.36 | Long-haul primary |
| Ch50 | 193.0 | 1563.86 | Metro DWDM |
| Ch60 | 192.0 | 1576.50 | Edge of C-band |
Installation and Deployment Best Practices
Pre-Deployment Planning
Network Design Considerations:
Accurate fiber characterization (attenuation, dispersion, PMD)
Link budget calculations for each span
Channel plan assignment to avoid conflicts
Redundancy and protection schemes (1+1, BLSR)
Management and monitoring strategy
Site Preparation:
Environmental controls (temperature, humidity for DWDM)
Power requirements and backup systems
Rack space allocation
Cable management infrastructure
Grounding and EMI protection
Installation Procedures
Fiber Preparation:
Thorough fiber cleaning using appropriate cleaning tools
Fiber inspection with microscope (scratch/contamination check)
OTDR testing to identify any fiber faults or excessive loss
Baseline measurements before equipment installation
Equipment Installation:
Mount multiplexers/demultiplexers in environmentally controlled racks
Install optical amplifiers if required (maintain EDFA coil bend radius >30mm)
Insert DWDM/CWDM transceivers ensuring proper seating
Connect fibers with appropriate connector types (LC, SC)
Verify all connections with visual fault locator
System Commissioning:
Power on equipment following manufacturer sequence
Configure wavelength channels and transceiver parameters
Measure optical power at all critical points
Verify bit error rate (BER) testing: target <10⁻¹²
Configure DDM thresholds for alarms
Document all measurements and configurations
Maintenance and Monitoring
Proactive Monitoring:
Continuous DDM parameter monitoring (temperature, voltage, optical power)
Optical channel monitor for wavelength drift detection
Automated alarming for threshold violations
Regular OTDR testing (quarterly) for fiber degradation
Preventive Maintenance:
Annual fiber cleaning and inspection
Optical amplifier performance verification
Transceiver temperature monitoring (identify cooling issues)
Firmware updates for managed equipment
Troubleshooting Common Issues:
High BER: Check optical power levels, fiber cleanliness, dispersion
Channel crosstalk: Verify wavelength accuracy, check multiplexer isolation
Intermittent failures: Monitor temperature, check for fiber bending
Power fluctuations: Inspect optical amplifiers, verify input levels
Manufacturing Excellence
Vertical Integration: FB-LINK controls the entire production chain from chip sourcing to final testing, ensuring consistent quality and competitive pricing.
Advanced Testing Infrastructure:
100% product burn-in testing (48-72 hours)
Temperature cycling: -40°C to +85°C
Eye diagram analysis for signal quality
Interoperability testing with 50+ switch platforms
Quality Certifications:
ISO 9001:2015 Quality Management
ISO 14001:2015 Environmental Management
CE, FCC, RoHS compliance
Telcordia GR-468-CORE standards
Technical Expertise
R&D Capabilities:
Dedicated optical design team with 10+ years experience
In-house AWG and TFF design and manufacturing
Custom wavelength solutions for specialized applications
Rapid prototyping (2-4 weeks for custom designs)
Application Engineering Support:
Pre-sales network design consultation
Link budget calculations and feasibility studies
Post-sales technical support and troubleshooting
On-site commissioning assistance (optional)
Supply Chain Reliability
Strategic Partnerships: Authorized distributors for Broadcom, Lumentum, NeoPhotonics, and other tier-1 component suppliers ensure component authenticity and reliability.
Inventory Management:
Stock of popular wavelengths for immediate shipment
VMI (Vendor Managed Inventory) programs for large customers
Just-in-time delivery to minimize customer inventory costs
Global Logistics:
5 regional distribution centers worldwide
Express shipping options (DHL, FedEx, UPS)
Consolidated shipments to reduce freight costs
5G Network Densification
The rollout of 5G networks requires massive fronthaul and backhaul bandwidth. Each 5G cell site can generate 10-25Gbps of traffic. WDM technology enables cost-effective aggregation of hundreds of cell sites over limited fiber infrastructure.
Market Forecast: 5G infrastructure investments expected to exceed $1 trillion globally through 2030, with CWDM/DWDM as critical enabling technology.
Hyperscale Data Center Growth
Cloud service providers (AWS, Azure, Google Cloud, Alibaba Cloud) are building massive data center campuses requiring terabits of inter-data center connectivity. DWDM provides the scalable bandwidth for data center interconnect (DCI).
Market Forecast: Data center DCI market projected to grow at 15% CAGR through 2028, with DWDM transceivers representing 40% of optical interconnect spending.
Video Streaming and Content Delivery
4K/8K video streaming, online gaming, and OTT content delivery generate exponential bandwidth growth. Content delivery networks (CDNs) rely on DWDM for efficient content distribution.
Bandwidth Impact: A single 4K stream requires 25Mbps; 8K requires 100Mbps. Millions of concurrent streams drive terabit-scale backbone requirements.
Internet of Things (IoT) and Edge Computing
Billions of IoT devices generate massive data volumes requiring aggregation and transport to cloud processing centers. Edge computing nodes need high-bandwidth, low-latency connections to core infrastructure.
Market Forecast: IoT connections projected to exceed 30 billion devices by 2025, driving metro network bandwidth requirements.
CWDM ROI Example
Scenario: Enterprise with 8 buildings requiring 10Gbps inter-building connectivity
Option 1: Dark Fiber Lease
Annual dark fiber lease: $1,200/fiber/mile × 20 miles × 8 fibers = $192,000/year
10G switches with fiber interfaces: $80,000
Total 5-year cost: $1,040,000
Option 2: FB-LINK CWDM Solution
8CH CWDM Mux/Demux: $2,000 × 2 = $4,000
8 pairs CWDM SFP+ 10G: $800 × 8 = $6,400
Dark fiber lease: $1,200/fiber/mile × 20 miles × 1 fiber pair = $24,000/year
Total 5-year cost: $130,400
ROI: 87.5% cost reduction, 11-month payback period
DWDM ROI Example
Scenario: Service provider requiring 1.6Tbps capacity over 200km
Option 1: Multiple Fiber Pairs
16 fiber pairs leased: $3,000/fiber/mile × 124 miles × 16 = $5,952,000/year
10G/100G transport equipment: $500,000
Total 5-year cost: $30,260,000
Option 2: FB-LINK 40CH DWDM System
40CH DWDM Mux/Demux: $25,000 × 2 = $50,000
DWDM 100G transceivers: $5,000 × 16 = $80,000
EDFA amplifiers: $15,000 × 6 = $90,000
1 fiber pair leased: $3,000/fiber/mile × 124 miles × 1 = $372,000/year
Total 5-year cost: $2,080,000
ROI: 93% cost reduction, future capacity to 4Tbps on same infrastructure
How to Order from FB-LINK
1. Determine Your Requirements:
Application type (metro, long-haul, DCI, enterprise)
Required capacity (number of channels, data rate per channel)
Transmission distance
Fiber type available (single-mode G.652/G.655, multimode)
Environmental conditions
2. Select Product Type:
CWDM or DWDM based on technical comparison
Transceiver form factors (SFP, SFP+, XFP, QSFP+, QSFP28)
Mux/Demux channel count and packaging
Optional components (amplifiers, OADM, DCM)
3. Request Quotation:
Contact FB-LINK sales team
Provide network diagram and requirements
Receive technical consultation and product recommendations
Get competitive wholesale pricing
4. Sample Evaluation (Optional):
Request evaluation samples for compatibility testing
Test in your specific environment
Verify performance before volume orders
5. Volume Order:
Place purchase order
Production lead time: 2-4 weeks (stock items ship within 48 hours)
Quality assurance and testing
Worldwide shipping with tracking
6. Technical Support:
Installation guidance documentation
Remote technical support during deployment
On-site support available for large projects
Warranty: 3-year standard, extended options available
Q: Can I mix CWDM and DWDM on the same fiber? A: Yes, with proper filtering. CWDM typically uses 1270-1610nm spectrum, while DWDM uses 1528-1565nm (C-band). They can coexist using band splitters/combiners, though this is uncommon in practice.
Q: What's the maximum distance for CWDM without amplification? A: CWDM can reach 80-120km on single-mode fiber depending on transceiver power budget and wavelength. CWDM is not compatible with EDFA amplification, limiting maximum distance.
Q: How many wavelengths can DWDM support? A: Commercial DWDM systems typically support 40-80 channels (100GHz spacing) or 80-160 channels (50GHz spacing). Laboratory systems have demonstrated 400+ channels using ultra-dense spacing.
Q: Are FB-LINK DWDM transceivers compatible with Cisco/Juniper equipment? A: Yes, FB-LINK DWDM/CWDM transceivers undergo extensive compatibility testing with major OEM platforms. We provide OEM-specific coding upon request.
Q: What's the difference between fixed and tunable DWDM transceivers? A: Fixed transceivers operate at a single ITU wavelength, requiring different part numbers for each channel. Tunable transceivers can be configured to any wavelength across the C-band, simplifying inventory management but at higher cost.
Q: Can I upgrade CWDM to DWDM later? A: While the fiber infrastructure remains the same, CWDM and DWDM use different transceivers and Mux/Demux equipment. Upgrading requires replacing endpoint equipment, though the fiber plant investment is preserved.
Q: What causes wavelength drift in DWDM systems? A: Temperature fluctuations are the primary cause. DWDM transceivers use thermoelectric coolers (TEC) to maintain stable laser temperature. Monitor DDM temperature parameters to identify cooling issues.
Q: How do I calculate required optical amplifier spacing? A: General rule: Install EDFAs every 60-100km depending on fiber loss (typically 0.2-0.25dB/km), multiplexer loss, and transceiver power budget. FB-LINK provides link budget calculation tools.

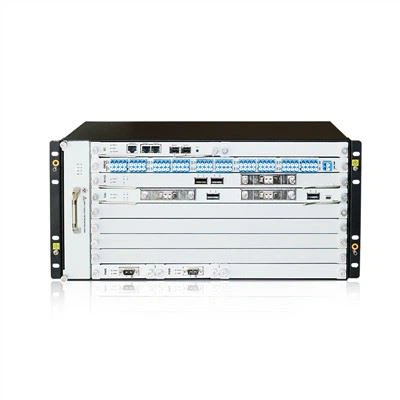

As one of the leading dwdm frame manufacturers and suppliers in China, we warmly welcome you to wholesale or buy discount dwdm frame in stock here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
(0/10)
