Optical Line Protection is an automated redundancy mechanism that monitors optical signals in fiber networks and instantly switches to a backup fiber path when signal degradation or failure is detected. OLP systems operate at the physical layer, providing protocol-independent protection for both DWDM and CWDM transmission systems without requiring changes to existing network equipment.
OLP systems continuously monitor signal quality on primary and secondary fiber paths. When the primary path experiences issues such as fiber cuts, excessive signal loss, or equipment failure, the OLP switch automatically redirects traffic to the backup path. This switching process typically occurs in less than 10 milliseconds, ensuring minimal service disruption and maintaining network availability above 99.999%.
DWDM (Dense Wavelength Division Multiplexing)
DWDM technology enables transmission of multiple wavelength channels over a single fiber with tight channel spacing (typically 0.8 nm or 100 GHz). DWDM systems support 40, 80, or even 96+ channels, making them ideal for:
Long-haul telecommunications networks
Metro core networks requiring high capacity
Data center interconnections over extended distances
Applications requiring transmission beyond 80 km
CWDM (Coarse Wavelength Division Multiplexing)
CWDM utilizes wider channel spacing (20 nm) to transmit up to 18 wavelengths over a single fiber. CWDM offers advantages including:
Lower equipment costs compared to DWDM
Reduced power consumption
Simplified deployment and maintenance
Ideal for distances up to 80 km
Perfect for enterprise and metro access networks
OLP systems provide automatic failover capabilities that ensure continuous service delivery even during fiber cuts or equipment failures. This redundancy is essential for service providers committed to maintaining SLA requirements of 99.999% availability or higher.
Cost-Effective Redundancy
Unlike electronic protection switching, OLP operates at the optical layer, eliminating the need for redundant expensive transponders and regenerators. This approach significantly reduces capital expenditure while maintaining robust network protection.
Protocol and Bit-Rate Independence
OLP systems work transparently with any protocol, data rate, or signal format. Whether your network transmits 1G, 10G, 40G, 100G, or mixed-rate traffic, OLP provides seamless protection without protocol-specific configurations.
Fast Switching Times
Modern OLP switches achieve switching times under 10 milliseconds, well within the thresholds required to prevent service disruption for most applications including voice, video, and data services.
Simplified Network Management
OLP systems offer straightforward configuration and monitoring through SNMP, web interfaces, or command-line management. Automatic detection and switching reduce the need for manual intervention during failure events.
Telecommunications Service Providers
Service providers deploy OLP systems to protect revenue-generating services and meet stringent SLA commitments. Protection is essential for:
Mobile backhaul networks connecting cell towers
Wholesale wavelength services
Carrier-grade Ethernet services
Dark fiber protection services
Financial Services and Trading
Financial institutions require ultra-low latency and maximum uptime for trading applications. OLP systems provide the redundancy necessary to maintain continuous operations in:
High-frequency trading networks
Stock exchange connections
Inter-bank communication links
Payment processing systems
Data Center Interconnections
Modern data centers rely on DWDM and CWDM links for replication, backup, and disaster recovery. OLP ensures business continuity by protecting:
Storage area network extensions
Virtual machine migrations
Database replication
Cloud service delivery
Secure government communications demand maximum reliability. OLP systems protect classified and mission-critical communications in applications requiring uninterrupted connectivity.
Hospitals and healthcare systems depend on reliable connectivity for electronic health records, telemedicine, and medical imaging. OLP provides the redundancy necessary to maintain patient care continuity.
Monitoring and Diagnostic Capabilities
Advanced OLP systems provide comprehensive monitoring including optical power levels, signal quality metrics, switch count history, and alarm notifications. These features enable proactive maintenance and quick troubleshooting.
Revertive and Non-Revertive Modes
Look for OLP switches offering both revertive (automatic return to primary path) and non-revertive (remain on working path) operating modes to match your specific operational requirements.
Multiple Switching Criteria
Quality OLP systems support multiple switching triggers including loss of signal (LOS), automatic power reduction (APR), and manual switching for planned maintenance activities.
Environmental Specifications
For deployment in diverse locations, ensure OLP systems meet appropriate environmental standards for temperature range, humidity, and shock/vibration resistance.
Standards Compliance
Verify compliance with relevant industry standards including Telcordia GR-1073-CORE, ITU-T G.841, and specific DWDM/CWDM wavelength specifications.

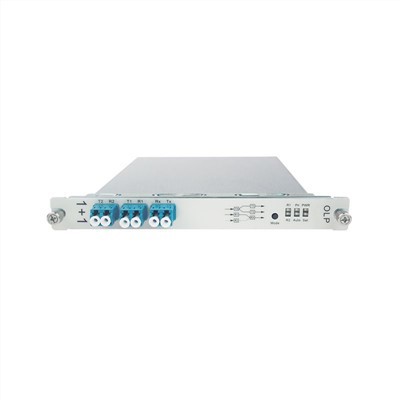

1+1 Protection Architecture
The most common OLP configuration where traffic is transmitted simultaneously on both primary and backup paths. The receiver selects the better signal, providing the fastest switching time with zero data loss.
1:1 Protection Architecture
In this configuration, traffic normally flows on the primary path only, with the backup path available for protection switching when needed. This architecture optimizes fiber utilization when multiple services share protection resources.
Ring Protection
OLP systems enable ring topologies where multiple nodes connect in a closed loop, providing bidirectional path protection and allowing traffic to route around failures in either direction.
DWDM OLP Specifications
Wavelength range: C-band (1528-1565 nm) or L-band (1565-1625 nm)
Channel spacing: 100 GHz, 50 GHz, or denser
Insertion loss: Typically <1.5 dB
Switching time: <10 ms
Isolation: >50 dB
Return loss: >45 dB
CWDM OLP Specifications
Wavelength range: 1270-1610 nm (18 channels)
Channel spacing: 20 nm
Insertion loss: Typically <2.5 dB
Switching time: <10 ms
Isolation: >45 dB
Return loss: >40 dB
Proper Fiber Route Diversity
Ensure primary and backup fiber paths follow physically diverse routes to protect against common-cause failures such as construction accidents or natural disasters.
Regular Testing and Maintenance
Implement scheduled testing of backup paths and OLP switching mechanisms to verify protection readiness. Automated testing features simplify this process.
Monitoring Integration
Integrate OLP monitoring into your network management system to receive immediate notification of protection events and path quality degradation.
Documentation and Labeling
Maintain accurate documentation of fiber paths, OLP configurations, and patch panel connections to support rapid troubleshooting and maintenance activities.
Integration with Software-Defined Networking
Next-generation OLP systems are incorporating SDN capabilities, enabling centralized control and programmable protection policies across multi-vendor networks.
AI-Powered Predictive Maintenance
Machine learning algorithms are being deployed to analyze optical performance trends and predict failures before they occur, enabling proactive maintenance.
Coherent Optics Protection
As coherent detection becomes standard for high-capacity links, OLP systems are evolving to support digital signal processing and advanced modulation formats.
Automation and Zero-Touch Provisioning
Modern OLP platforms support automated discovery, configuration, and failover testing, reducing operational complexity and human error.
When selecting an Optical Line Protection system for your DWDM or CWDM network, consider:
Compatibility: Ensure wavelength compatibility with your existing DWDM/CWDM equipment
Scalability: Choose solutions that can grow with your network capacity requirements
Management features: Evaluate monitoring, alerting, and integration capabilities
Environmental requirements: Match specifications to deployment locations
Vendor support: Consider technical support quality and spare parts availability
Total cost of ownership: Factor in initial costs, operational expenses, and expected lifespan
Conclusion
Optical Line Protection is an indispensable component of reliable DWDM and CWDM networks. By providing automatic, sub-10ms protection switching, OLP systems ensure the high availability that modern applications demand. Whether you're operating a telecommunications network, connecting data centers, or supporting mission-critical enterprise applications, implementing robust OLP solutions protects your investment in fiber infrastructure while maximizing network uptime.
As networks continue to grow in capacity and importance, OLP technology will remain fundamental to delivering the resilient, always-on connectivity that our increasingly digital world requires. Investing in quality optical line protection today ensures your network infrastructure can meet tomorrow's availability challenges.
