How to Choose 40G QSFP+ Optical Module?
Building a high-performance 40G network infrastructure requires a substantial investment in 40G optical modules, which constitute a significant portion of network deployment costs. What are the 40G QSFP+ optical module standards and how should you make the optimal selection?
When selecting the right 40G QSFP+ optical transceiver, compatibility is the foremost consideration. Not all 40Gbps optical transceivers are identical, and to prevent any compatibility issues, you must ensure the optical module you choose will integrate seamlessly with your existing hardware, switches, routers, and cabling infrastructure.
To eliminate compatibility concerns, it is strongly recommended that you consult your hardware vendor or partner with an experienced optical transceiver supplier. They can provide expert guidance to help you address any compatibility challenges related to optical transceivers and ensure flawless integration into your network environment.
Energy efficiency is a critical factor in contemporary data center operations. Data centers are well-known for their substantial power consumption, which not only results in elevated operating costs but also contributes to environmental concerns. Therefore, selecting a 40GbE optical transceiver with lower power consumption can significantly reduce operational expenses.
Different types of optical transceivers have varying power requirements. Utilizing low-power optical transceivers can not only help minimize electricity bills, but also support environmentally responsible and sustainable operating practices. Therefore, when selecting optical transceivers, it is crucial to carefully compare their power consumption specifications and ensure that the chosen optical transceiver aligns with your data center's energy efficiency goals and sustainability initiatives.
Optimizing space within the data center is vital for improving cost efficiency and ensuring future scalability. With higher density 40Gb/s optical transceivers, you can maximize your valuable rack space utilization. By selecting optical transceivers that can accommodate more ports per rack unit, data center capacity can be maximized without expensive physical expansion projects.
Furthermore, high-density optical transceivers often come equipped with advanced features such as hot-swappable modules and digital diagnostic monitoring (DDM). These capabilities minimize downtime during maintenance or upgrades, thereby not only reducing operating costs but also enhancing overall data center reliability, availability, and operational efficiency.
When selecting a 40G QSFP+ optical transceiver, it is essential to evaluate the total cost of ownership (TCO). Many data center operators often focus exclusively on the initial purchase price, but this approach may not provide a comprehensive assessment. In reality, the performance, reliability, and longevity of optical transceivers have a profound impact on long-term operating costs.
When calculating TCO, be sure to consider factors such as maintenance requirements, warranty coverage, technical support availability, and potential replacement costs. A seemingly inexpensive optical transceiver can become significantly costly due to frequent replacements or unplanned network downtime. Therefore, by investing in optical transceivers with a proven track record of reliability and performance, you can save time and reduce costs associated with network outages and emergency repairs, ensuring efficient and effective use of your capital budget.
Data Center Spine-Leaf Architecture
40G QSFP+ optical transceivers are ideal for building modern data center spine-leaf architectures, providing high-bandwidth connectivity between leaf switches and spine switches for efficient east-west traffic flow.
Server and Storage Connectivity
Perfect for connecting high-performance servers and storage arrays requiring high-speed, low-latency connections for virtualization, database applications, and cloud computing workloads.
Enterprise Core Network
Excellent for enterprise core network aggregation layers, connecting distribution switches and providing high-bandwidth backbone connectivity for mission-critical business applications.
Data Center Interconnect (DCI)
Enables efficient data center interconnect solutions for connecting geographically dispersed data centers, supporting disaster recovery, data replication, and workload distribution across multiple sites.
High-Performance Computing (HPC)
Supports high-performance computing clusters requiring massive bandwidth and low latency for scientific research, financial modeling, artificial intelligence, and machine learning applications.
Campus Network Backbone
Provides high-speed backbone connectivity for large campus networks, aggregating multiple 10G access layer connections and delivering reliable performance for bandwidth-intensive applications.
The core device in the optical transceiver is the optical transceiver device that realizes photoelectric signal conversion, which mainly includes the optical transmitting device TOSA (Transmitter Optical Sub-Assembly), the optical receiving device ROSA (Receiver Optical Sub-Assembly), and the optical transmitting and receiving device BOSA that integrates components such as TOSA and ROSA through coaxial coupling. The current technical barriers to optical transceivers mainly lie in two critical aspects: optical chips and advanced packaging technology of optical transceivers.
Optical Module Production Process
The core links of the optical module production process mainly include Die attach or Die bonding, Wire-Bonding, optical coupling, packaging, welding, and burn-in testing. Each step requires precision engineering and rigorous quality control to ensure optimal performance, reliability, and longevity in demanding network environments.
View more about our advanced manufacturing process
According to the difference in optical fibers, optical modules can be divided into single-mode and multi-mode variants. The optical coupling inside these two optical modules is quite different:
Multimode Fiber (MMF): The core diameter of multimode optical fiber is usually 50/125μm or 62.5/125μm. Surface-emitting laser VCSEL is commonly used, which is coupled into the multimode optical fiber through a reflector. The optical path is simple, the tolerance is large, and the process is relatively straightforward. Multimode 40G QSFP+ transceivers (such as 40GBASE-SR4) are ideal for short-reach applications up to 150 meters using OM3 fiber or 400 meters using OM4 fiber, with MPO/MTP connector interface.
Single-Mode Fiber (SMF): The core diameter of single-mode fiber is smaller than that of multi-mode fiber, typically 9/125 μm, and the coupling is more complex and requires a lens for focused coupling. Single-mode 40G QSFP+ transceivers support longer distances, ranging from 2km (40GBASE-LR4) to 40km (40GBASE-ER4) or even longer for DWDM applications, making them suitable for data center interconnects, metropolitan area networks, and long-haul telecommunications.
40G QSFP+ Transceivers in Different Packages
Packaging methods are usually divided into hermetic packaging and non-hermetic packaging:
Hermetic Packaging: The main methods of hermetic packaging include TO-can, BOX (box), and butterfly packaging. They are primarily used in the telecommunications market or DCI market (data center long-distance transmission) where the working environment is harsh and high reliability requirements are essential for mission-critical applications.
Non-Hermetic Packaging: Non-hermetic packaging is mainly COB (chip on board) packaging technology, which is predominantly used in data center optical modules. This packaging method offers significant cost advantages while maintaining adequate performance and reliability for controlled data center environments.
View more about our advanced packaging technologies
Technical Specifications of 40G QSFP+ Optical Transceivers
Key Features
Data Rate: 4 x 10.3125 Gbps (40.5 Gbps aggregate)
Form Factor: QSFP+ (Quad Small Form-Factor Pluggable Plus)
Interface: MPO/MTP-12 (multimode), LC duplex (single-mode)
Power Consumption: Typically ≤3.5W
Operating Temperature: 0°C to 70°C (Commercial), -5°C to 85°C (Extended), -40°C to 85°C (Industrial)
Distance Options: 150m (OM3), 400m (OM4), 2km, 10km, 40km
Standards Compliance: IEEE 802.3ba, QSFP+ MSA, SFF-8436
Common 40G QSFP+ Module Types
40GBASE-SR4: 850nm VCSEL, MPO/MTP interface, multimode fiber, up to 150m (OM3) or 400m (OM4)

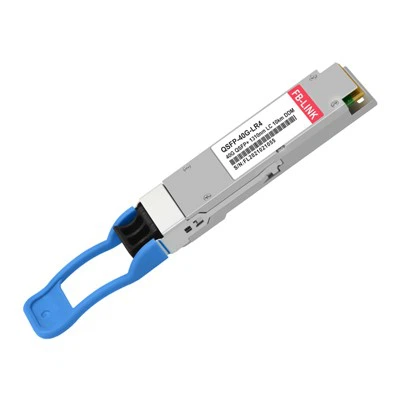

40GBASE-LR4: 1310nm CWDM, LC duplex interface, single-mode fiber, up to 10km

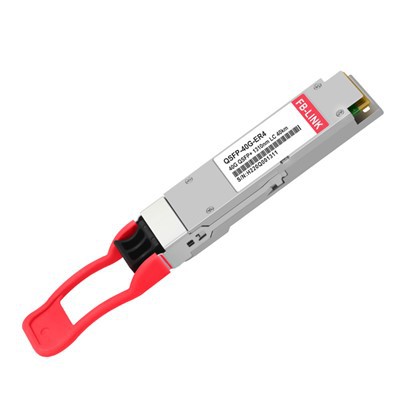

40GBASE-ER4: 1310nm CWDM, LC duplex interface, single-mode fiber, up to 40km
40GBASE-PLR4: 1310nm, MPO/MTP interface, single-mode fiber, parallel optics, up to 10km
40GBASE-UNIV: Universal transceiver supporting both SR4 (multimode) and LR4 (single-mode) applications
QSFP+ DAC: Direct Attach Copper cable assemblies for short-reach connections up to 7m
QSFP+ AOC: Active Optical Cable assemblies for medium-reach connections up to 100m
Quality Assurance and Testing
FB-LINK implements stringent quality control measures throughout the manufacturing process:
100% Factory Testing: Every 40G QSFP+ module undergoes comprehensive testing before shipment to ensure flawless performance
Burn-In Testing: Extended operation under stress conditions to verify long-term reliability and identify early failures
Temperature Cycling: Verification of performance across the full operating temperature range to ensure reliability in various environments
Optical Performance Testing: Precise measurement of transmit power, receive sensitivity, eye diagram quality, and bit error rate
Compatibility Testing: Extensive validation with major switch and router platforms from Cisco, Juniper, Arista, Dell, HPE, and others
Mechanical Testing: Verification of connector durability, insertion/extraction cycles, and physical robustness
EMI/EMC Testing: Electromagnetic interference and compatibility testing to ensure compliance with international standards
Why 40G QSFP+ is the Ideal Choice for Modern Networks
Proven Technology with Wide Adoption
40G QSFP+ is a mature, widely deployed technology with extensive industry support, ensuring interoperability, reliability, and readily available technical expertise for deployment and troubleshooting.
Cost-Effective High-Bandwidth Solution
40G QSFP+ provides four times the bandwidth of 10G at a significantly lower cost per gigabit compared to 100G solutions, offering exceptional value for bandwidth-hungry applications without over-provisioning.
Flexible Deployment Options
With multiple distance and fiber type options (SR4, LR4, ER4, PLR4), 40G QSFP+ can adapt to various network topologies and requirements, from intra-rack connections to inter-building links.
Efficient Port Density
QSFP+ form factor enables higher port density compared to multiple 10G ports, reducing switch costs, power consumption, and rack space requirements while simplifying cable management.
Smooth Migration Path
40G QSFP+ supports breakout configurations (4x10G), allowing gradual migration from 10G infrastructure and providing investment protection during network evolution to higher speeds.
Reduced Power Consumption
Compared to using four separate 10G transceivers, a single 40G QSFP+ module typically consumes less total power, reducing operational costs and cooling requirements in data centers.
40G QSFP+ vs Other Technologies
40G QSFP+ vs 10G SFP+
40G QSFP+ provides 4x the bandwidth in a single port, reducing cable count, simplifying management, and lowering per-gigabit costs compared to using four 10G SFP+ ports.
40G QSFP+ vs 100G QSFP28
While 100G offers higher bandwidth, 40G QSFP+ provides a more cost-effective solution for applications that don't require the full 100G capacity, with lower transceiver and switch costs.
40G QSFP+ vs 25G SFP28
40G QSFP+ offers better port density and can break out to 4x10G, while 25G SFP28 provides a more granular bandwidth option. Choice depends on specific application requirements and network architecture.
Installation and Deployment Best Practices
Proper Handling
Always handle transceivers by the body, never touching the optical connector
Keep dust caps on until ready for installation
Store unused transceivers in anti-static bags in controlled environments
Fiber Optic Cable Management
Use appropriate fiber type (OM3/OM4 for SR4, OS2 for LR4/ER4)
Ensure fiber cleanliness using proper cleaning tools and procedures
Maintain minimum bend radius specifications to prevent signal degradation
Use proper cable routing and strain relief to prevent damage
System Configuration
Verify switch/router compatibility before installation
Configure proper port settings and speeds
Enable digital diagnostic monitoring (DDM) for proactive maintenance
Implement proper labeling and documentation for easier troubleshooting
Testing and Verification
Perform optical power measurements to verify proper operation
Check bit error rate (BER) for link quality assessment
Monitor temperature and voltage through DDM interface
Conduct thorough testing before production deployment
Troubleshooting Common 40G QSFP+ Issues
Link Not Coming Up
Verify transceiver is fully seated in the port
Check fiber connections and cleanliness
Confirm compatible transceiver type for the distance
Verify switch port configuration and enabled status
High Bit Error Rate
Inspect fiber for damage or contamination
Verify fiber type matches transceiver specifications
Check for excessive bending or stress on cables
Measure optical power levels to ensure proper range
Intermittent Connectivity
Monitor temperature through DDM interface
Check for loose connections or vibration
Verify power supply stability to the switch
Inspect for electromagnetic interference sources
Customer Support and Services
FB-LINK provides comprehensive support services including:
Technical Consultation: Expert advice on product selection, network design, and deployment strategies
Customization Services: Tailored solutions for specific application requirements and custom coding
Fast Delivery: Efficient global logistics ensuring timely product delivery worldwide
After-Sales Support: Dedicated technical support team available for troubleshooting and assistance
Warranty Coverage: Comprehensive warranty protection with advance replacement options
Compatibility Testing: Pre-shipment testing with customer-specified equipment upon request
Training and Documentation: Technical training and detailed documentation for installation and maintenance
Environmental Compliance and Sustainability
FB-LINK is committed to environmental responsibility:
RoHS Compliance: All products comply with RoHS directives for hazardous substance restrictions
Energy Efficiency: Low-power designs minimize environmental impact and reduce carbon footprint
Recyclable Materials: Use of recyclable materials in packaging and product construction
Environmental Certifications: ISO 14001 environmental management system certification
Sustainability Initiatives: Continuous improvement in manufacturing processes to reduce waste and energy consumption
Contact FB-LINK for Your 40G QSFP+ Requirements
Ready to deploy reliable, high-performance 40G QSFP+ optical transceivers in your network? Contact FB-LINK today for:
Competitive wholesale pricing and volume discounts
Detailed product specifications and datasheets
Customized quotations for your specific requirements
Technical consultation and network design assistance
Sample evaluation units for testing and validation
Fast delivery and responsive customer service
FB-LINK - Your Trusted Partner for 40G QSFP+ Optical Transceivers
Frequently Asked Questions (FAQ)
Q: What is the difference between 40GBASE-SR4 and 40GBASE-LR4? A: 40GBASE-SR4 uses 850nm VCSEL lasers with multimode fiber for short distances (up to 150m on OM3, 400m on OM4), while 40GBASE-LR4 uses 1310nm CWDM lasers with single-mode fiber for longer distances up to 10km.
Q: Can I use a 40G QSFP+ transceiver to connect to four 10G ports? A: Yes, with a breakout cable (40G to 4x10G), you can connect one 40G QSFP+ port to four separate 10G SFP+ ports, providing flexible migration options.
Q: What is the typical power consumption of a 40G QSFP+ module? A: Most 40G QSFP+ modules consume approximately 3.5W or less, though this varies by type (SR4 modules typically consume less than LR4 modules).
Q: Are FB-LINK 40G QSFP+ transceivers compatible with major networking brands? A: Yes, FB-LINK 40G QSFP+ transceivers are designed and tested for compatibility with major networking equipment from Cisco, Juniper, Arista, Dell, HPE, Extreme Networks, and others.
Q: What is the difference between MPO-12 and MPO-24 connectors? A: MPO-12 has 12 fibers and is the standard connector for 40G SR4 applications, while MPO-24 has 24 fibers and is typically used for higher-density applications or 100G transceivers.
