Direct Attach Copper (DAC) cables are high-speed, cost-effective connectivity solutions designed for short-distance data transmission in data centers. These fixed-assembly cables integrate connectors directly with copper cables, eliminating the need for separate transceivers.
DAC cables offer a unique combination of simplicity and performance. Unlike traditional fiber optic solutions, DAC cables use copper conductors housed within a protective cable assembly. The integrated design means transceivers are built directly into the cable connectors, creating a plug-and-play solution that requires no additional components.
Passive DAC Cables operate without electronic components, relying purely on copper conductors for signal transmission. These cables are ideal for distances up to 7 meters and offer the lowest power consumption and cost per connection. Passive DAC cables are perfect for top-of-rack switching and server-to-switch connections within the same rack.
Active DAC Cables incorporate signal amplification and equalization electronics to extend transmission distances up to 15 meters while maintaining signal integrity. The active components consume slightly more power but enable longer reach in demanding environments where passive cables would experience too much signal degradation.
Cost efficiency stands as the primary benefit of DAC cable solutions. With integrated transceivers and no separate optical modules required, DAC cables typically cost 50-70% less than equivalent fiber optic solutions. Installation simplicity further reduces deployment costs, as technicians can complete connections in seconds without specialized tools or training.
Power consumption is another significant advantage. Passive DAC cables consume zero power since they lack electronic components, while active DAC cables use substantially less power than optical transceivers. In large-scale deployments with thousands of connections, this power savings translates to reduced cooling requirements and lower operational expenses.
Low latency makes DAC cables ideal for high-frequency trading, real-time analytics, and other latency-sensitive applications. The direct copper connection provides faster signal transmission compared to optical conversions, with typical latency reductions of 0.1-0.3 microseconds per connection.
Optical transceivers convert electrical signals to optical signals and vice versa, enabling high-speed data transmission over fiber optic cables. These modular devices plug into network equipment and work with separate fiber optic cables to create flexible, long-distance connectivity solutions.
Optical transceivers contain three main components: a transmitter that converts electrical signals to light using lasers or LEDs, a receiver that converts incoming light back to electrical signals using photodetectors, and control circuitry that manages signal processing and monitoring functions.
SFP (Small Form-Factor Pluggable) transceivers support speeds up to 1 Gbps and remain popular for legacy systems and cost-sensitive applications requiring moderate bandwidth.
SFP+ (Enhanced Small Form-Factor Pluggable) transceivers deliver 10 Gbps performance in the same compact form factor, making them the workhorse of modern 10G networks.
SFP28 transceivers push speeds to 25 Gbps while maintaining SFP+ physical compatibility, providing an upgrade path for existing infrastructure.

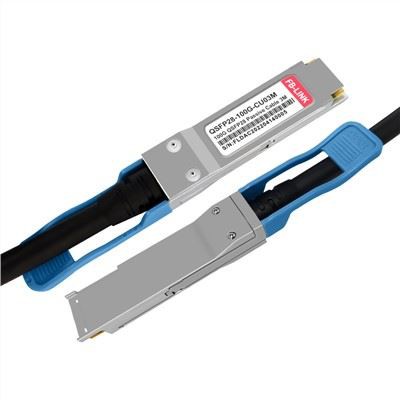

QSFP28 (Quad Small Form-Factor Pluggable) transceivers achieve 100 Gbps by aggregating four 25 Gbps channels, serving as the backbone for high-performance computing and cloud infrastructure.
QSFP56 and QSFP-DD represent the latest evolution, supporting 200 Gbps and 400 Gbps respectively to meet explosive bandwidth demands in hyperscale data centers.
Extended transmission distance is the defining benefit of optical transceivers. While DAC cables are limited to 7-15 meters, optical solutions routinely span hundreds of meters within data centers and can extend to hundreds of kilometers for wide area networks using single-mode fiber.
Flexibility and scalability make optical transceivers attractive for growing networks. The modular design allows easy upgrades by swapping transceivers without replacing infrastructure cabling. Organizations can deploy fiber once and upgrade speeds multiple times over the cable's 20-30 year lifespan.
Electromagnetic immunity gives fiber optic connections inherent protection against electrical interference, making them ideal for electrically noisy environments like industrial settings or areas near power equipment.
Distance Requirements
Distance is often the determining factor. For connections under 7 meters, passive DAC cables offer unbeatable value. Between 7-15 meters, active DAC cables maintain cost advantages while delivering reliable performance. Beyond 15 meters, optical transceivers become necessary, with multimode fiber supporting up to 550 meters for 10G applications and single-mode fiber extending to kilometers.
Cost Considerations
Initial capital expenditure heavily favors DAC cables for short distances. A typical 10G passive DAC cable costs $15-30, while equivalent optical transceivers with fiber cables cost $150-300. However, long-term considerations matter too. Fiber infrastructure offers better upgrade economics, as existing cables support multiple speed generations with only transceiver replacements needed.
Power and Cooling Impact
Data centers spending millions on power and cooling must consider operational expenses. A passive DAC cable consumes 0 watts, active DAC uses 0.5-1 watts, while optical transceivers consume 1.5-3.5 watts depending on speed and type. Across thousands of ports, these differences become substantial, potentially requiring additional cooling infrastructure for all-optical networks.
Application-Specific Recommendations
Top-of-Rack Switching: DAC cables excel at connecting servers to access switches within racks, offering the lowest cost per connection and minimal latency.
Rack-to-Rack Connections: For adjacent racks within 7 meters, passive DAC cables work perfectly. For racks 7-15 meters apart, active DAC cables provide cost-effective solutions. Beyond 15 meters, optical transceivers become necessary.
Storage Networks: High-performance storage networks benefit from DAC cables' low latency within racks, while optical transceivers enable distributed storage across multiple locations.
Core Network Links: Data center spine switches and core routers almost always use optical transceivers to span larger distances and enable flexible topology designs.
High-Frequency Trading: Ultra-low latency applications demand DAC cables wherever physically possible to minimize signal propagation time.
Speed and Bandwidth
Both technologies support equivalent speeds from 10 Gbps to 400 Gbps, though availability varies by form factor. Ensure your choice matches not just current needs but anticipated growth over the next 3-5 years.
Cable Management
DAC cables have fixed lengths and limited flexibility due to thicker gauge copper, making cable management more challenging in dense environments. Fiber optic cables offer greater flexibility and easier routing through cable trays and tight spaces.
Reliability and Lifespan
Both technologies offer excellent reliability when properly deployed. DAC cables typically have mean time between failure (MTBF) ratings exceeding 100,000 hours. Optical transceivers similarly provide long service lives, though the separate fiber cables can occasionally face damage from bending or crushing.
DAC Cable Deployment
Verify compatibility between cable vendors and network equipment, as some vendors implement proprietary coding. Avoid exceeding bend radius specifications, typically around 30-40mm for DAC cables, as tight bends can cause performance degradation or failure. Keep cables away from power supplies and high-voltage equipment to minimize electromagnetic interference with active DAC cables.
Optical Transceiver Installation
Clean fiber connectors before each insertion using appropriate cleaning tools and lint-free wipes. Inspect connectors with fiber microscopes to ensure no contamination remains, as even microscopic particles cause significant signal loss. Use proper insertion force when seating transceivers, ensuring the latch fully engages without over-forcing. Monitor optical power levels and bit error rates after installation to verify proper operation.
Future Trends in Data Center Connectivity
The industry continues evolving toward higher speeds and greater efficiency. Co-packaged optics, integrating transceivers directly into switch silicon, promise to revolutionize data center architecture. Silicon photonics technology aims to dramatically reduce optical transceiver costs while improving performance. DAC cable technology advances with better materials and designs to extend reach and increase speeds.
As 400G becomes standard and 800G deployments accelerate, both DAC cables and optical transceivers will continue playing complementary roles in data center infrastructure, each optimized for specific distance ranges and use cases.
Conclusion: Choosing Your Connectivity Strategy
The DAC cable versus optical transceiver decision isn't about which technology is better, but rather which is appropriate for each specific connection. Successful data center designs leverage both technologies strategically: DAC cables for short-reach, cost-sensitive connections requiring minimal latency, and optical transceivers for longer distances, flexible infrastructure, and future-proof scalability.
By understanding the strengths, limitations, and ideal applications of each technology, you can design network infrastructure that optimizes performance, minimizes costs, and provides room for growth. Whether connecting servers within a rack or linking data centers across a campus, the right combination of DAC cables and optical transceivers forms the foundation of reliable, efficient network connectivity.
