Cisco optics compatibility matrix meets vendor requirements





The cisco optics compatibility matrix is an interactive tool at tmgmatrix.cisco.com that verifies which optical transceivers work with specific Cisco networking equipment. Third-party vendors meet these requirements through a three-layer compliance approach: adhering to MSA physical standards, programming proper EEPROM coding for device recognition, and passing validation through Cisco's testing parameters.





Understanding the Cisco Optics Compatibility Matrix Verification System



Cisco's TMG Compatibility Matrix Tool replaced the old static tables that became unmanageable as product portfolios expanded. The tool receives over 1,000 daily page views, demonstrating how critical compatibility verification has become for network operators.

The matrix serves two distinct purposes. First, it shows which optical transceivers are qualified for specific switches, routers, and line cards. Second, it documents minimum software versions required for each optic-device combination. This dual function matters because a transceiver might be physically compatible but still fail if the IOS version doesn't support it.

How the verification process actually works: When you insert an optic into a Cisco device, the system reads the transceiver's EEPROM memory. The device checks for a valid Product ID (PID) and verifies the internal coding matches expected parameters. If validation fails, the port enters an err-disabled state with a "gbic-invalid" error message.

Third-party vendors must navigate this verification system while maintaining the same performance standards as Cisco-branded optics. The challenge isn't just physical compatibility-it's about meeting software-level authentication requirements that Cisco builds into its devices.



The Three-Layer Compliance Model



Understanding vendor requirements requires examining three distinct compliance layers. Each layer addresses different aspects of compatibility, and failure at any level prevents successful deployment.

Physical Layer: MSA Standards Foundation

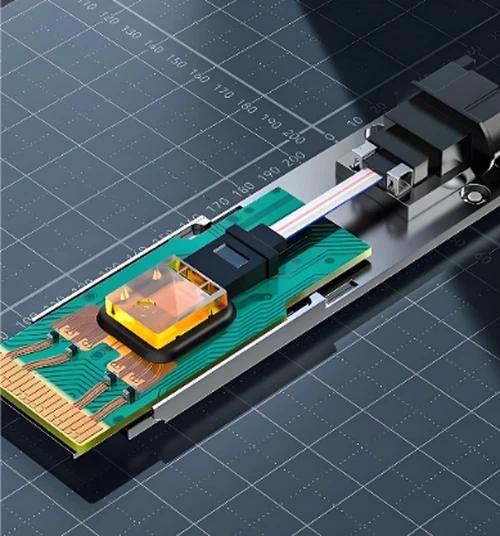

Multi-Source Agreements define the mechanical and electrical specifications that make optical transceivers interchangeable across vendors. These industry-wide standards specify form factors, pin configurations, electrical interfaces, and power requirements.

MSA compliance covers several critical elements. The transceiver housing must fit the switch port exactly-there's zero tolerance for dimensional variations. Electrical signaling must match voltage levels, data rates, and timing specifications. The fiber optic interface needs proper connector types and optical power levels for the intended reach and speed.

Third-party manufacturers source components from the same suppliers that provide to Cisco. Companies like Finisar, Avago, and Lumentum manufacture the actual laser and optical components used across the industry. A 10GBASE-SR SFP+ uses the same 850nm VCSEL laser whether it's branded Cisco or sold by a third-party vendor.

The key distinction: MSA compliance makes a transceiver physically compatible, but it doesn't make it functionally compatible with Cisco equipment. That requires the next layer.

Digital Layer: EEPROM Coding Requirements

Every optical transceiver contains an EEPROM chip storing identification data, operating parameters, and diagnostic information. Cisco devices read this EEPROM to determine if they should accept or reject the module.

The EEPROM structure follows the SFF-8472 specification for diagnostic monitoring, but Cisco adds proprietary verification. The memory map includes vendor name, Product ID, serial number, date code, and a security checksum. Without the correct values in these fields, Cisco switches flag the transceiver as unsupported.

Reputable third-party vendors solve this through proper coding. They program the EEPROM with data that matches Cisco's verification algorithms. This isn't piracy or counterfeiting-it's providing the handshake data that Cisco devices expect to see.

The coding process varies by vendor capability. Some third-party suppliers code optics in-house, allowing rapid response to compatibility issues. Others code overseas at manufacturing facilities, which can delay troubleshooting when platform-specific adjustments are needed. In-house coding typically indicates a more sophisticated vendor with better engineering support.

Quality vendors include several guarantees around coding. They warrant that optics will operate properly on specified platforms. They offer advance replacement if coding issues arise. Some even provide coding boxes that let customers reprogram transceivers for different platforms, enabling reuse across mixed-vendor environments.



Operational Layer: Matrix Tool Validation



The final compliance layer involves actual testing against the cisco optics compatibility matrix. Third-party vendors must verify their coded transceivers work with target devices across multiple dimensions.

Testing requirements extend beyond simple link establishment. Vendors must validate that Digital Optical Monitoring functions correctly, reporting accurate transmit and receive power levels. They need to confirm that the transceiver initializes properly within Cisco's timing requirements. Speed autonegotiation must work correctly for multi-rate optics.

Professional vendors test on actual Cisco equipment before shipping. They maintain testing labs with major Cisco platforms-Catalyst switches, Nexus data center switches, ISR routers, ASR edge routers. Each transceiver model gets validated against the specific devices listed in customer requirements.

The TMG Matrix Tool itself provides the reference data for this validation. Vendors can search by device model to see which Cisco PIDs are qualified, then ensure their compatible versions match those specifications. Understanding how to effectively use the cisco optics compatibility matrix becomes essential for third-party vendors developing compatible transceivers. The tool includes detailed notes about minimum software versions, special configuration requirements, and known limitations.



Navigating the Cisco Optics Compatibility Tool



The TMG Matrix Tool at tmgmatrix.cisco.com offers several search methods that vendors should understand. You can query by network device family, specific device PID, transceiver family, or transceiver PID. The tool also supports filtering by data rate, reach distance, cable type, and form factor.

Search results display in a table showing which transceivers work with which devices. Hovering over the notes icon reveals additional details-software version requirements, special cabling needs, or operational restrictions. The tool allows exporting results to Excel, PDF, or CSV formats for documentation purposes.

A practical example: Searching for "QSFP100" displays all 100G QSFP transceivers and their compatible devices. Expanding filter categories shows available reaches (SR4, LR4, PSM4), form factors, and data rates. Selecting specific filters narrows results to exactly the transceivers meeting your requirements.

The matrix includes direct links to datasheets for both transceivers and network devices. These datasheets provide detailed specifications that third-party vendors should reference when developing compatible modules. They specify optical power budgets, bit error rate requirements, and environmental operating ranges.



Meeting Warranty and Support Requirements



Cisco's warranty policy regarding third-party optics follows a clear but often misunderstood framework. The Magnuson-Moss Warranty Act prevents Cisco from voiding equipment warranty solely because customers use non-Cisco optics. This federal law prohibits tie-in sales requirements.

What Cisco's policy actually states: If a problem is clearly caused by a third-party transceiver, Cisco may require swapping to a Cisco-branded optic to continue troubleshooting. If the issue persists with a Cisco optic, warranty coverage remains valid. If the problem disappears with the Cisco optic, the third-party module was indeed the culprit.

This creates a practical consideration for third-party vendors. Their products must be reliable enough that they rarely become the source of network issues. A vendor whose transceivers frequently cause problems will erode customer confidence regardless of warranty protection.

Quality third-party vendors typically offer lifetime warranties on their transceivers, exceeding the limited warranty periods from Cisco. This demonstrates confidence in their products and provides customers with long-term protection. The warranty should explicitly cover compatibility issues, not just hardware failures.





Technical Validation Checklist for Vendors



Third-party vendors should verify their transceivers meet specific technical requirements before claiming Cisco compatibility. This checklist covers the critical validation points.

MSA mechanical compliance requires exact dimensional tolerances. The transceiver body, connector position, and mounting latch must match reference specifications. Even slight variations can cause insertion problems or port damage.

Electrical interface validation includes voltage levels, current draw, signal integrity, and EMI characteristics. Power consumption must stay within the limits specified for each form factor. A QSFP28 module shouldn't exceed the allocated power budget or it may cause thermal issues in high-density switches.

Optical specifications need validation across the operating range. Transmit power must fall within the specified window-neither too high nor too low. Receiver sensitivity must meet the standard for the reach category. Wavelength accuracy matters for DWDM applications where channels are tightly spaced.

Digital diagnostics monitoring should report accurate values for temperature, voltage, transmit power, receive power, and bias current. These values must update in real-time and trigger appropriate alarms when thresholds are exceeded. Cisco's show interface transceiver command should display correct diagnostic data.

Software compatibility testing must cover multiple IOS or IOS-XE versions. The transceiver should initialize properly, negotiate speed correctly, and maintain stable links across software updates. Testing should include scenarios like port flapping, power cycling, and warm reboots.



Common Compatibility Challenges and Solutions



Even with proper MSA compliance and coding, third-party vendors encounter specific compatibility challenges that require solutions.

Challenge: EEPROM checksum failures occur when the security code or CRC doesn't match Cisco's expectations. The device rejects the transceiver with a "VN_DATA_CRC_ERROR" message. Solution: Vendors must program the correct checksum algorithm based on Cisco's implementation. This requires understanding the specific calculation method Cisco uses for verification.

Challenge: Software version dependencies mean a transceiver works with IOS 15.2 but fails with IOS 16.3 due to driver changes. Solution: Vendors need to maintain compatibility matrices showing tested software versions and alert customers about known incompatibilities. Regular consultation of the cisco optics compatibility matrix helps vendors stay current with Cisco's testing and qualification status. They should test new IOS releases proactively.

Challenge: DOM monitoring discrepancies happen when diagnostic values report incorrectly or not at all. Cisco's NMS tools may show alarm conditions when the transceiver is actually operating normally. Solution: Vendors must implement the SFF-8472 specification correctly and validate DOM data against known good reference measurements.

Challenge: Mixed-vendor interoperability arises when connecting Cisco optics to third-party optics across a fiber link. Different vendors may implement optical parameters slightly differently within MSA tolerances. Solution: Third-party vendors should test optical interoperability with actual Cisco transceivers, not just against MSA specs.

The override command service unsupported-transceiver allows Cisco devices to accept non-recognized optics, but this bypasses normal validation. Using this command means Cisco TAC won't support issues potentially related to the optic. Professional third-party vendors code their products correctly so customers don't need override commands.



Quality Vendor Selection Criteria



Network operators evaluating third-party optic suppliers should assess specific criteria that indicate vendor quality and capability.

Manufacturing process transparency separates quality vendors from questionable suppliers. Look for vendors who document their supply chain, identify their component sources, and explain their testing procedures. They should disclose whether they manufacture in-house or contract production.

Testing infrastructure investment demonstrates vendor commitment. Quality suppliers maintain equipment labs with current Cisco platforms for validation testing. They should be able to show test reports with actual measurements-optical power levels, bit error rates, temperature cycling results, and long-term reliability data.

Coding capability and location impacts support responsiveness. In-house coding enables faster issue resolution and platform-specific customization. Overseas coding may result in delays when compatibility problems emerge or new platforms need support.

Technical support structure matters when issues arise. The vendor should employ RF and optical engineers who understand transceiver technology at a deep level, not just sales staff reading spec sheets. They should provide pre-sales compatibility consultation and post-sales troubleshooting assistance.

Warranty terms and replacement process reveal vendor confidence. Lifetime warranties are becoming standard among reputable suppliers. The replacement process should include advance replacement shipment before returning the failed unit, minimizing network downtime.

Compliance certifications provide independent validation. Look for ISO 9001 quality management certification, RoHS environmental compliance, and UL or TUV safety approvals. These certifications indicate systematic quality control processes.



Market Dynamics and Pricing Considerations



The economics of Cisco versus third-party optics reflect interesting market dynamics. Cisco doesn't manufacture its own transceivers-they're sourced from the same optical component manufacturers that supply third-party vendors.

Third-party transceivers typically cost 50-70% less than Cisco-branded equivalents. A Cisco SFP-10G-SR might retail for $1,200 while a compatible third-party version sells for $300-400. For large deployments with hundreds or thousands of ports, these savings become substantial.

The price differential isn't about quality-it's about business model. Cisco maintains high optic margins to subsidize other aspects of their product portfolio. Third-party vendors operate with lower margins but higher volume. They compete on price, availability, and flexibility rather than brand premium.

A cost analysis for a typical data center build: Equipping a 48-port 10G switch with Cisco SFP-10G-SR transceivers costs approximately $57,600 just for optics. Using tested third-party compatibles at $400 each reduces the cost to $19,200-a saving of $38,400 per switch. Across multiple switches, these savings fund additional network capacity or other infrastructure improvements.

Third-party vendors often maintain better inventory availability. Cisco's distribution channels can experience backorders during high-demand periods. Quality third-party suppliers stock common models for same-day or next-day shipping. This availability advantage matters when rapid deployment or emergency replacement is needed.



Frequently Asked Questions



Do third-party optics actually void Cisco warranty?

No. Federal law (Magnuson-Moss Warranty Act) prevents manufacturers from voiding warranty solely for using non-OEM parts. Cisco's policy allows them to request swapping to Cisco optics during troubleshooting if they suspect the third-party transceiver causes an issue. If problems persist with Cisco optics installed, warranty coverage continues. The equipment warranty remains valid-only the specific troubleshooting case may require using Cisco optics to isolate the issue.

How do third-party vendors get the proper EEPROM codes?

Reputable vendors reverse-engineer Cisco's verification algorithms through extensive testing or obtain coding information through industry knowledge sharing. The EEPROM structure follows public MSA specifications, but Cisco adds proprietary verification checksums. Quality vendors program correct values that satisfy Cisco's authentication process without counterfeiting Cisco's identity. They use their own vendor names and serial numbers while ensuring the coding allows device recognition.

Can I use commands to override Cisco's transceiver checking?

Yes, but with limitations. The command service unsupported-transceiver or interface-level transceiver permit pid all bypasses Product ID verification. However, this generates Platform Fault Manager alarms and places the device in an unsupported configuration. Cisco TAC may refuse support while these commands are active. More importantly, these commands don't magically make incompatible optics work-they only skip the initial PID check. Properly coded third-party optics shouldn't require override commands.

What's the difference between Cisco's compatibility matrix and interoperability matrix?

The Compatibility Matrix (tmgmatrix.cisco.com) shows which transceivers work with which Cisco network devices-the optic-to-device relationship. The Interoperability Matrix shows which transceivers can communicate with each other optically over fiber-the optic-to-optic relationship. Third-party vendors primarily reference the Compatibility Matrix to ensure their products work with target Cisco equipment. The Interoperability Matrix matters when mixing Cisco and third-party optics on opposite ends of fiber links.



The Path Forward



Third-party optical transceivers successfully meet Cisco compatibility requirements when vendors follow the three-layer compliance model-MSA physical standards, proper EEPROM coding, and operational validation through actual testing. The market has matured to where quality third-party optics perform identically to Cisco-branded versions at significantly lower costs.

Network operators benefit from understanding these requirements when evaluating vendors. Not all third-party suppliers demonstrate equal competence. The gap between professional vendors with proper testing infrastructure and low-cost providers selling minimally-tested imports is substantial. Choosing vendors who invest in compatibility validation, maintain testing labs, and offer responsive engineering support maximizes the benefits while minimizing risks.

The cisco optics compatibility matrix provides the reference framework that enables this competitive market. By documenting specifications and requirements transparently, Cisco allows third-party vendors to develop compatible products. This competition drives innovation and keeps pricing rational. For network operators, the key is selecting third-party vendors who take compatibility seriously and invest appropriately in meeting Cisco's requirements at all three layers.
