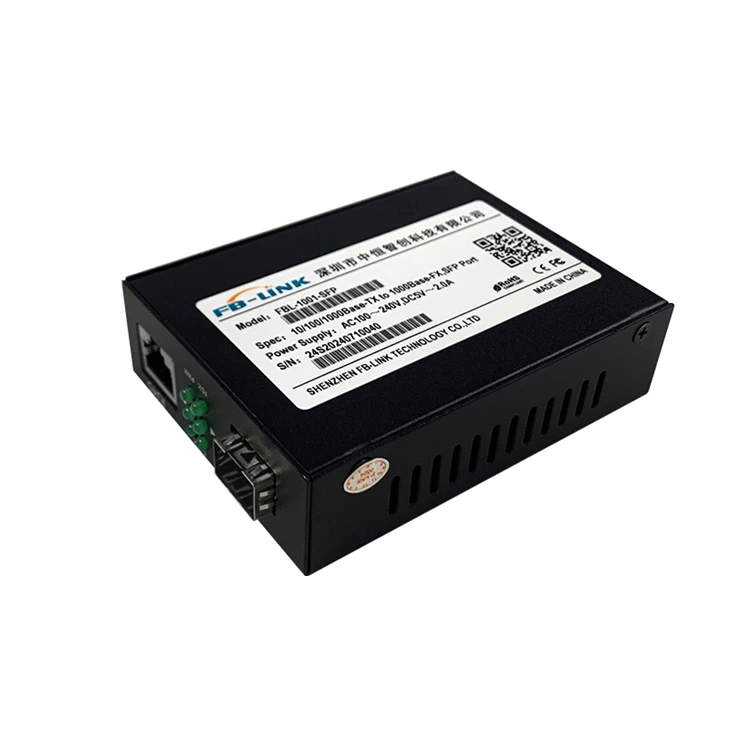

10/100/1000Base Media Converter Fiber Transceiver





Port Type	1x 10/100/1000Base-T RJ45 1x 100/1000Base-X SFP	Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Cable Type(Fiber)	Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm	Cable Type(Copper)	Cat5/5e/6
Power Consumption	4.6W	Input Power	5V DC,2A Max.
Jumbo Frame Speed	9K	Speed	Twisted pair-10/100Mbps for half/full duplex, 1000Mbps for full duplex Fiber Optic-100Mbps/1000Mbps for full duplex
Operating Temperature	0°C to 50°C	Dimensions(HxWxD)	26x70x97mm
Storage Temperature	-10°C to 70°C	MTBF(hrs)	>50,000Hrs





In today's fast-paced digital landscape, network infrastructure demands flexibility, speed, and unwavering reliability. Our optical transceivers deliver exactly that-providing the critical link between copper and fiber networks while ensuring your data flows seamlessly across your enterprise.

Why Choose Our Media Conversion Technology?

Flexible Deployment Options

Whether you're upgrading legacy copper infrastructure or building a hybrid network, our transceivers adapt to your specific requirements. The dual-port architecture allows you to connect copper-based devices directly to fiber optic networks, eliminating the need for complete infrastructure overhauls and protecting your technology investments.

Enterprise-Grade Performance

Designed for mission-critical environments, these units deliver consistent, high-speed data transmission without compromise. The auto-negotiation capabilities ensure optimal performance across various network speeds, while advanced chipset technology maintains signal integrity even in demanding applications.

Future-Proof Infrastructure

Network demands evolve rapidly. Our transceivers support both multimode and single-mode fiber configurations, giving you the flexibility to scale distances from local connections to extended campus networks. This versatility means your conversion equipment grows with your needs rather than becoming obsolete.

Ideal Applications

Data Centers: Seamlessly integrate legacy equipment with modern fiber infrastructure without disrupting operations.

Industrial Environments: Rugged design and wide operating temperature tolerance ensure reliable performance in challenging conditions.

Campus Networks: Extend network reach beyond copper limitations while maintaining centralized management.

Telecommunications: Bridge different network segments and technologies for comprehensive service delivery.

Built for Reliability

Quality engineering ensures continuous operation in business-critical scenarios. The robust metal housing provides effective heat dissipation and electromagnetic shielding, while the plug-and-play design minimizes deployment complexity and potential configuration errors.

Energy Efficiency Meets Performance

Modern networks must balance performance with sustainability. Our transceivers optimize power consumption without sacrificing capability, reducing operational costs and supporting your organization's environmental initiatives.

Technical Excellence

Every unit undergoes rigorous testing to ensure compliance with international standards and protocols. This commitment to quality means fewer failures, reduced maintenance requirements, and lower total cost of ownership throughout the product lifecycle.

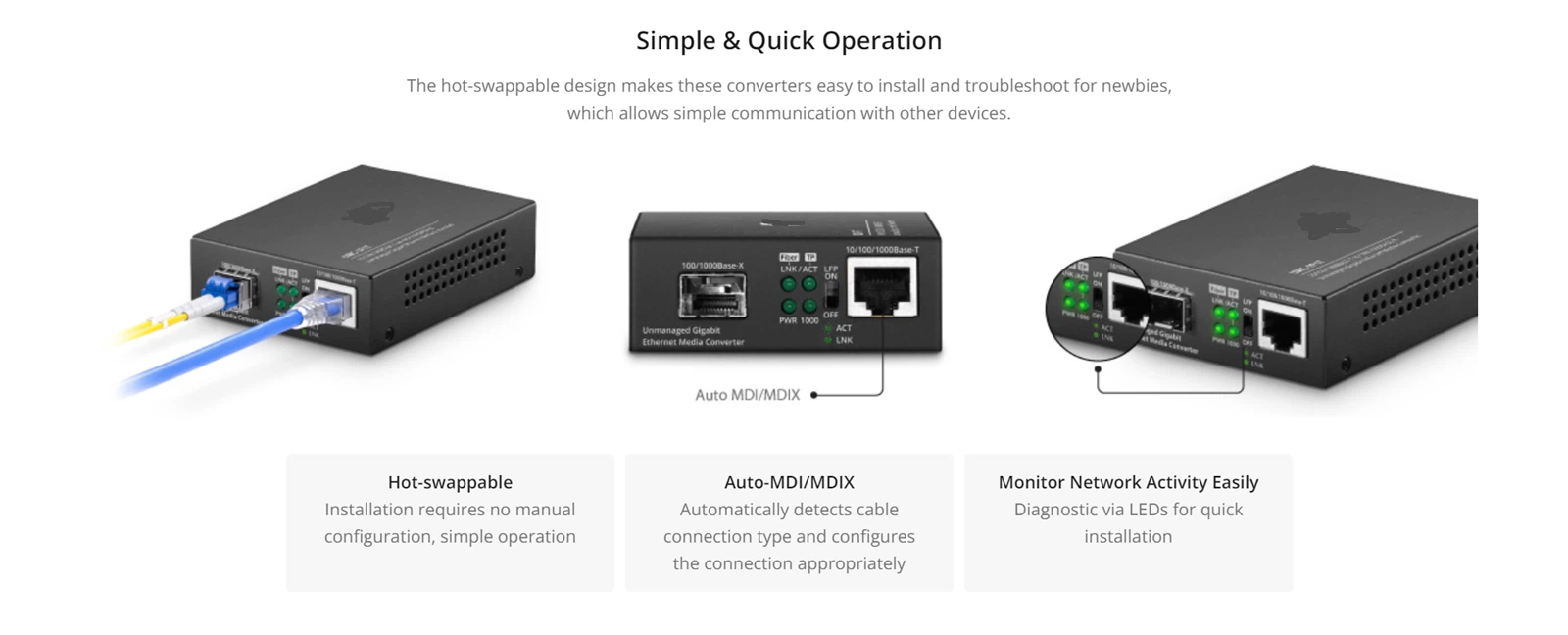

Simple Integration

Network upgrades shouldn't require extensive downtime or specialized expertise. The intuitive design allows IT teams to deploy and configure these transceivers quickly, with automatic detection features that streamline the installation process.

Your Network, Connected

Whether you're managing a small business network or overseeing enterprise-wide infrastructure, reliable media conversion is essential. Our optical transceivers provide the dependable performance and flexibility that modern networks demand, backed by engineering expertise and quality you can trust.

---

Ready to enhance your network infrastructure? Contact our technical team to discuss your specific requirements and discover how our connectivity solutions can optimize your network performance.
