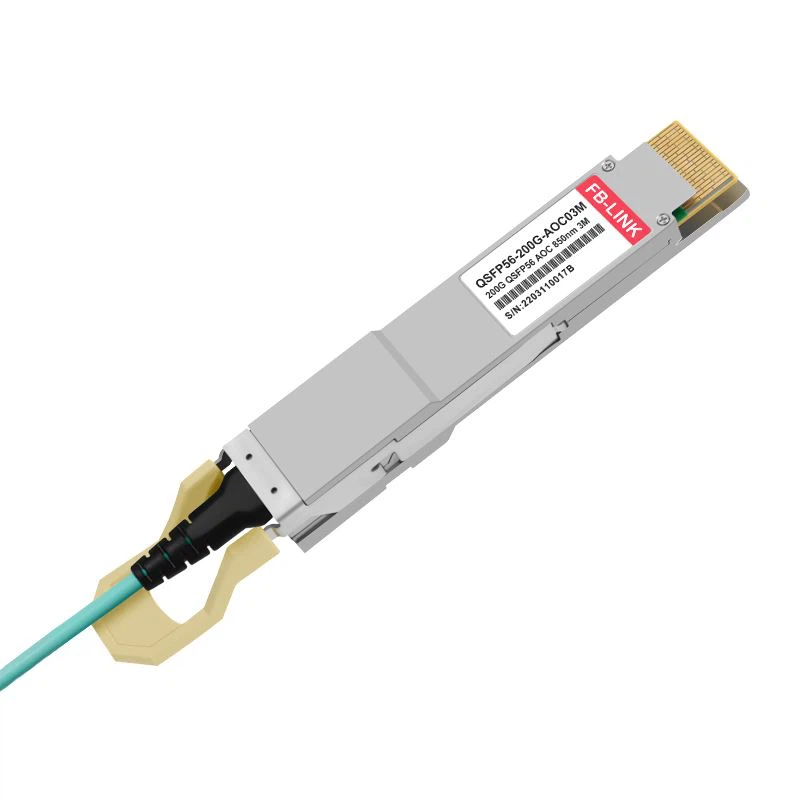

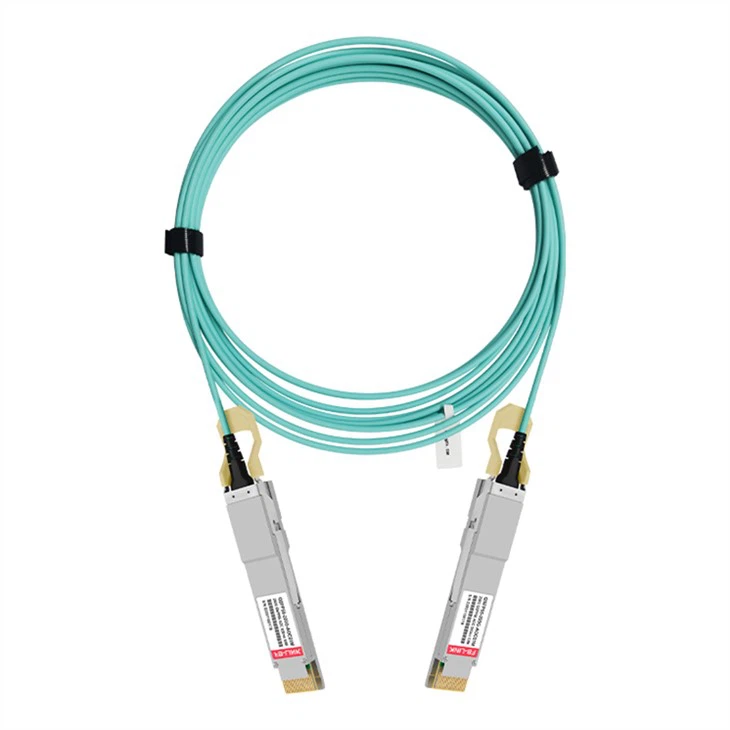

200GBASE QSFP56 AOC Cable



Item Spotlights

● Hot-pluggable QSFP56 form factor

● Supports 212.5Gb/s aggregate bit rate

● Power dissipation <5W/each port

● Commercial case temperature range of 0°C to 70°C

● Single 3.3V power supply

● Maximum link length of 20m on Multi Mode Fiber (MMF)

● Aligned with IEEE 802.bs

● 4x50G PAM4 VCSEL-based 850nm transmitter

● 4x50G PAM4 retimed 200GAUI-8 electrical interface

● I2C management interface

● RoHS compliant



Description

Compatible	200G QSFP56 AOC	Vendor Name	FB-LINK
Connector Type	QSFP56 to QSFP56	Max Data Rate	200Gbps
Minimum Bend Radius	30mm	Cable Length	0.5~50M
Jacket Material	LSZH	Cable Type	OM3
Receiver Type	PIN	Transmitter Type	VCSEL
Wavelength	850nm	Modulation Format	PAM4
MTBF	≈3.2 Million Hours	Power Consumption	＜4.5W
Power supply	3.3V	Commercial Temperature Range	0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery)	TX & RX Built-in CDR	Application	Data Center, 200Gb/s InfiniBand HDR systems
Protocols	IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636, InfiniBand HDR	Warranty	3 Years





High-speed data transmission has become the backbone of modern enterprise infrastructure. As bandwidth demands continue to surge, network administrators and data center operators are seeking solutions that deliver exceptional performance while maintaining cost-efficiency. Optical transceivers have emerged as the definitive answer to these challenges, offering unparalleled speed, reliability, and scalability for next-generation networks.

Understanding Modern Optical Transceivers

The evolution of network connectivity has been remarkable. Optical transceivers represent a fundamental shift from traditional copper-based solutions, providing the bandwidth necessary for contemporary applications including cloud computing, artificial intelligence workloads, and high-performance computing clusters. These devices convert electrical signals into optical signals and vice versa, enabling data to travel at the speed of light through fiber optic cables.

What sets advanced optical transceivers apart is their ability to handle multiple channels simultaneously. Modern implementations utilize sophisticated modulation techniques and wavelength-division multiplexing to maximize throughput without requiring additional physical infrastructure. This efficiency makes them ideal for organizations looking to upgrade their network capabilities without complete infrastructure overhauls.

The Power of 200G Connectivity

Breaking through the 200 gigabit barrier represents a significant milestone in networking technology. This level of performance supports the most demanding enterprise applications, from real-time big data analytics to seamless 8K video streaming across multiple locations. The architecture behind these high-speed optical transceivers leverages four independent channels, each operating at 50Gb/s, to achieve aggregate throughput that would have seemed impossible just a few years ago.

Energy efficiency remains a critical consideration for data center operations. Despite their impressive performance capabilities, modern optical transceivers maintain remarkably low power consumption profiles, typically under 5 watts per port. This efficiency translates directly into reduced operational costs and smaller cooling requirements-factors that significantly impact total cost of ownership over the lifecycle of network equipment.

Multimode Fiber: The Practical Choice

For data center environments where equipment racks are located within the same facility or adjacent buildings, multimode fiber offers an optimal balance between performance and cost. Optical transceivers designed for multimode applications can reliably transmit data across distances up to 100 meters while maintaining signal integrity and minimal latency. This range perfectly accommodates typical data center layouts and campus network designs.

The 850nm wavelength commonly employed in these systems has proven itself through years of deployment. Vertical-cavity surface-emitting lasers (VCSELs) operating at this wavelength provide excellent reliability, cost-effectiveness, and compatibility with existing fiber infrastructure. Organizations can leverage their current multimode fiber installations while achieving cutting-edge performance levels.

Hot-Pluggable Design and Operational Flexibility

Network maintenance windows are precious and increasingly rare in always-on business environments. Hot-pluggable optical transceivers eliminate the need for system shutdowns during upgrades or replacements. Network engineers can swap modules while equipment remains powered and operational, minimizing disruption and maintaining business continuity.

This design philosophy extends to form factor standardization. The industry has coalesced around specific physical specifications that ensure interoperability across vendors and equipment generations. Whether upgrading existing infrastructure or building new installations, organizations benefit from this standardization through simplified procurement, reduced inventory complexity, and greater flexibility in vendor selection.

Advanced Signal Processing Capabilities

The technical sophistication embedded within modern optical transceivers is extraordinary. Built-in clock and data recovery (CDR) circuits on both transmit and receive paths ensure signal integrity even over extended distances or in electrically noisy environments. These circuits automatically compensate for signal degradation, jitter, and timing variations that occur during transmission.

Pulse amplitude modulation (PAM4) represents another crucial advancement in signal encoding. By transmitting two bits per symbol instead of one, PAM4 effectively doubles the data rate without requiring proportional increases in bandwidth. This efficiency allows optical transceivers to achieve 200Gb/s performance while operating within frequency ranges that hardware and fiber infrastructure can reliably support.

Standards Compliance and Ecosystem Compatibility

Interoperability is non-negotiable in enterprise networking. Leading optical transceivers adhere to multiple industry standards including IEEE 802.3 for Ethernet, InfiniBand specifications for high-performance computing, and Small Form Factor committee specifications for physical interfaces. This comprehensive standards compliance ensures that these devices integrate seamlessly into diverse networking environments.

The management interface capabilities of modern optical transceivers provide unprecedented visibility into network health. Through standard I2C interfaces, network monitoring systems can query real-time parameters including optical power levels, temperature, voltage, and diagnostic information. This telemetry enables proactive maintenance strategies and rapid troubleshooting when issues arise.

Reliability and Environmental Considerations

Mission-critical networks demand exceptional reliability. Quality optical transceivers are engineered for mean time between failures (MTBF) measured in millions of hours, representing decades of continuous operation under normal conditions. This reliability stems from careful component selection, rigorous testing protocols, and conservative thermal management designs.

Environmental responsibility increasingly influences procurement decisions. RoHS-compliant optical transceivers meet strict regulations regarding hazardous substances, supporting corporate sustainability initiatives. Low-smoke zero-halogen (LSZH) cable jackets provide additional safety benefits in occupied spaces by minimizing toxic fume generation in fire scenarios.

Application Scenarios and Use Cases

Data center interconnects represent the primary deployment scenario for high-speed optical transceivers. Whether connecting top-of-rack switches to spine switches in leaf-spine architectures or linking storage arrays to compute clusters, these devices provide the bandwidth necessary for modern distributed applications. Their low latency characteristics make them particularly suitable for financial trading platforms, scientific research facilities, and other latency-sensitive applications.

Supercomputing environments present unique challenges that optical transceivers address effectively. The massive parallel processing inherent in supercomputing workflows generates enormous east-west traffic between compute nodes. High-bandwidth, low-latency optical interconnects ensure that communication overhead doesn't become a bottleneck limiting overall system performance. InfiniBand networks, in particular, have become the de facto standard for these demanding environments.

Future-Proofing Your Infrastructure

Technology investments must deliver value beyond immediate requirements. Optical transceivers provide a migration path toward even higher speeds as standards evolve and mature. The fundamental architecture supporting 200G systems can scale to 400G and beyond through parallel development in modulation schemes, signal processing, and optical component technology.

Backward compatibility considerations ensure that infrastructure investments remain protected as networks evolve. Modern packaging approaches maintain physical compatibility with previous generations while delivering enhanced performance. This design philosophy allows organizations to adopt new technology incrementally, upgrading specific network segments as business requirements and budgets dictate.

Frequently Asked Questions

What is the difference between active and passive optical cables?

Active optical cables incorporate electronic components within the cable assembly itself, including transmitters, receivers, and signal processing circuitry. Passive cables simply contain optical fibers and connectors. Active designs extend distance capabilities, improve signal integrity, and often provide better electromagnetic compatibility compared to passive alternatives.

Can these optical transceivers work with existing network infrastructure?

Yes, modern optical transceivers are designed for standards compliance and broad compatibility. They work with standard multimode fiber types already deployed in most data centers. The hot-pluggable design means they can replace existing modules without equipment modifications. However, always verify specific compatibility requirements with your equipment vendor.

How do I calculate the total cost of ownership for optical transceivers?

Total cost of ownership includes initial purchase price, installation costs, power consumption over the device lifetime, cooling requirements, maintenance expenses, and potential downtime costs. Despite potentially higher upfront costs compared to copper alternatives, optical transceivers typically deliver lower TCO through reduced power consumption, longer service life, and decreased maintenance requirements.

What maintenance do optical transceivers require?

Optical transceivers are largely maintenance-free during normal operation. The primary maintenance consideration is keeping optical connector end-faces clean, as contamination can degrade performance. Regular monitoring of diagnostic parameters through management interfaces enables proactive identification of potential issues before they impact network performance.

How does cable bend radius affect performance?

Exceeding minimum bend radius specifications can cause signal loss, increase bit error rates, or even damage the fiber. Always respect manufacturer specifications for bend radius, typically around 30mm for active optical cables. Proper cable management practices prevent stress on connectors and ensure long-term reliability.

Are these optical transceivers suitable for outdoor applications?

Standard data center optical transceivers are designed for controlled environmental conditions with specific temperature ranges. For outdoor or industrial applications with extreme temperatures, humidity, or other environmental factors, consult with vendors about ruggedized or extended-temperature-range options specifically designed for harsh environments.

What happens if one channel fails in a multi-channel system?

Modern optical transceivers implement independent channels, so single-channel failure typically results in reduced throughput rather than complete connection loss. The specific behavior depends on the network protocol and equipment configuration. Some systems can continue operating at reduced speed, while others may disable the entire link for data integrity reasons.
